Curation - Application Properties
Intended audience: END-USERS ANALYSTS DEVELOPERS ADMINISTRATORS
AO Platform: 4.3
Overview
This section contains an overview of all properties related to the configuration of Applications used when adding Curation to an MSO. Any number of visual representations can be associated with the data, including Tables, Charts, Cue Cards, Maps, etc…

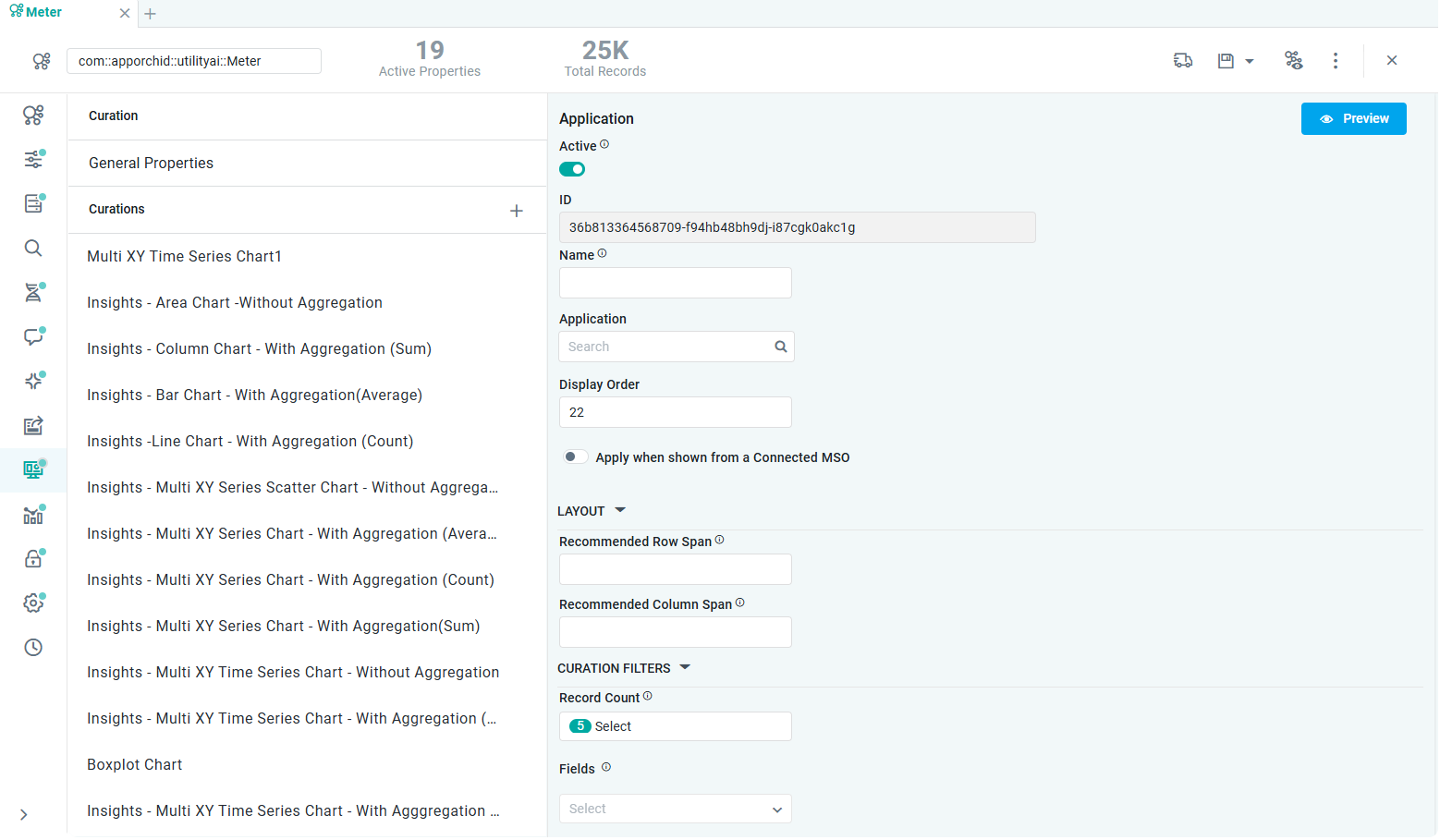

Application Properties
Label | UI Widget | Defaults | Description |
|---|---|---|---|
Active | ON/OFF Toggle | Enabled | An Application curation can be either Active or Inactive. Default is Active/Enabled. This allows multiple Applications to be created for an MSO, but if Inactive/Disabled, will not show up on the Easy Answers Results page. |
ID | Read-only Field | Shows the ID assigned to the Application. A consistent internal ID reference. | |
Name | Text Field | This is the Curation Name of the Application configuration. It’ll appear in the Curation list in the left-side panel. If no Curation Name is entered, the Name of the selected Application will be used. | |
Application | Text Field w/Search | Select the desired Application from the Search dialog. | |
Display Order | Number Field | Number to indicate the order of the Micro App amongst other Apps on the Results page in Easy Answers. | |
Apply when shown from a Connected MSO | ON/OFF Toggle | Disabled | If enabled, the Application will be shown even if it is referenced by a Connected MSO. |
LAYOUT | |||
| Number Field | Enter a number to identify the height of the App. Different Apps may have different default heights. If no Row Span is applied, the App will most often be rendered as a 4 rows x 4 columns span. Cue Cards may be as small as 1 x 1, however, most other Apps can not be resized to less than a 2 x 2 span. | |
| Number Field | Enter a number to identify the width of the App (most often a number between 2 and 8). Different Apps may have different default widths. If no Column Span is applied, the App will most often be rendered as a 4 rows x 4 columns span. Cue Cards may be as small as 1 x 1, however, most other Apps can not be resized to less than a 2 x 2 span. | |
CURATION FILTERS | |||
| Multi-select Dropdown | This property allows the user to determine when the configured Application will be used, - depending on number of records that will be shown. This allows the user to configure different Applications for small/medium/large data volumes. | |
| Dropdown | Like the Record Count property, the Fields list (repeater) is used to determine which Curation will be used for the visualization - depending on the words used in the NLP query matching the property fields configured (from one or more MSOs). | |
| Text Field | Group Name is used to identify a group of property fields - configured under Group Fields. | |
| Multi-select Tags | Group Fields allows the user to configure multiple property fields (from one or more MSOs) for each Group Name. | |
PARAMETERS | |||
| Text Field | The Parameters repeater section allows the user to select some additional parameters that will be applied to the Micro App selected, including aggregations. The Name field is the friendly name for what is selected in the MSO Field dropdown. | |
| Dropdown | The dropdown MSO Field allows the user to select an option relating to each MSO Field, such as data aggregation. |
Preview

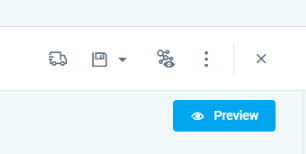

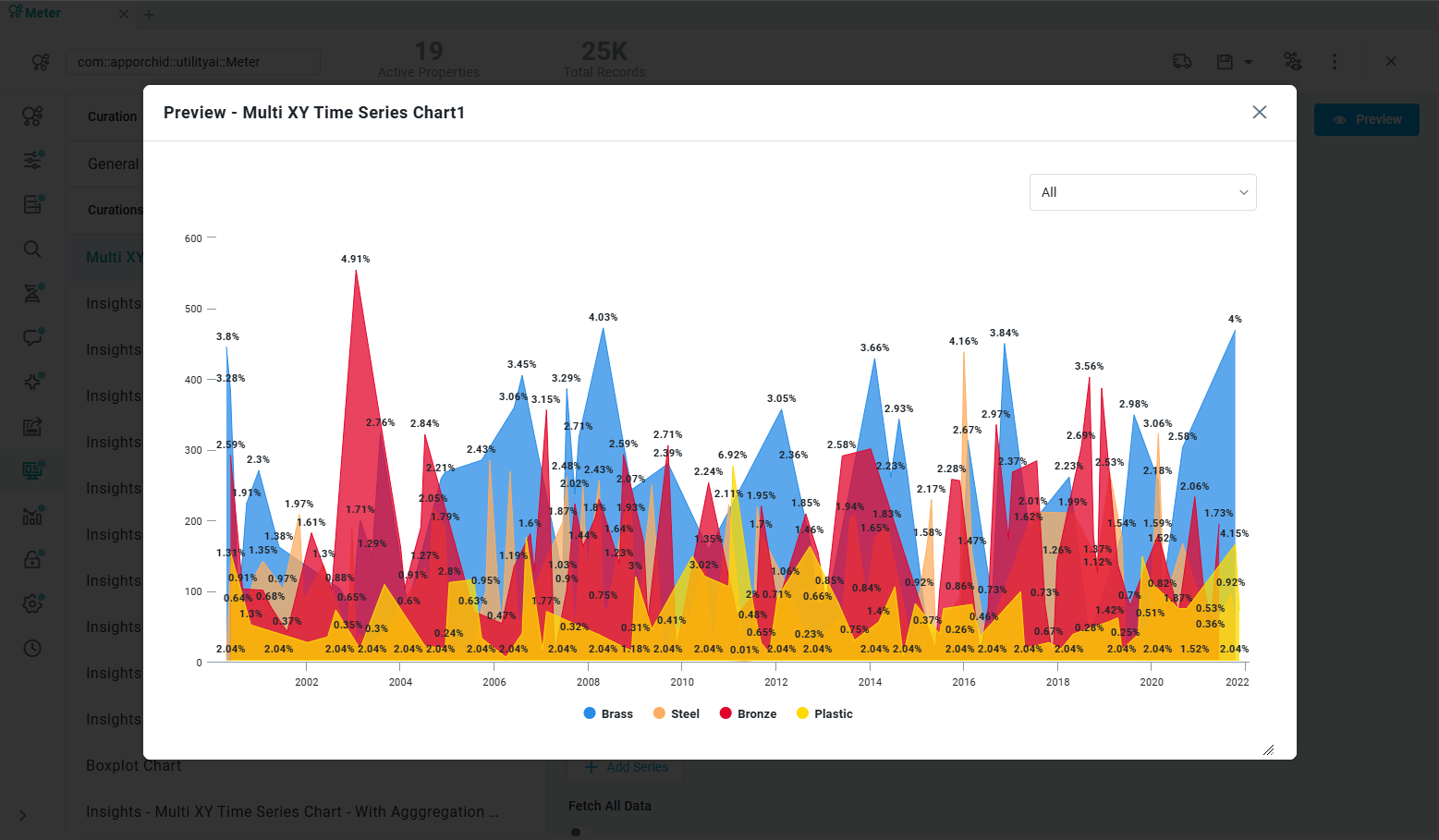

Once an Application has been configured as a Curated visualization, click the Preview button to see what the Application will look like when shown in Easy Answers. In general, interactions with the Application including single- and double-click actions available on links and in charts will also be available in the Preview mode. Layout options managing the size of the Micro Applications will not be used in Preview, but will be used when the App is shown in the Easy Answers Results and Dashboard pages. Some complex Applications requiring input request parameters may not be fully compliant in Preview mode.
Before clicking the Preview button, make sure to save the MSO using the Save option in the Header.
