Curation - Boxplot Chart

Intended audience: END-USERS ANALYSTS DEVELOPERS ADMINISTRATORS

AO Platform: 4.3

Overview

This section provides an overview of a Boxplot Chart. A Boxplot Chart is a data visualization tool commonly used to represent and compare values across different categories. It enables quick interpretation of trends, patterns, and comparisons, aiding in decision-making. The Boxplot Chart is a powerful tool for summarizing data distributions, aiding decision-making, and uncovering key insights from complex datasets.

Configuration of Boxplot Chart

Properties

Label	UI Widget	Default	Description

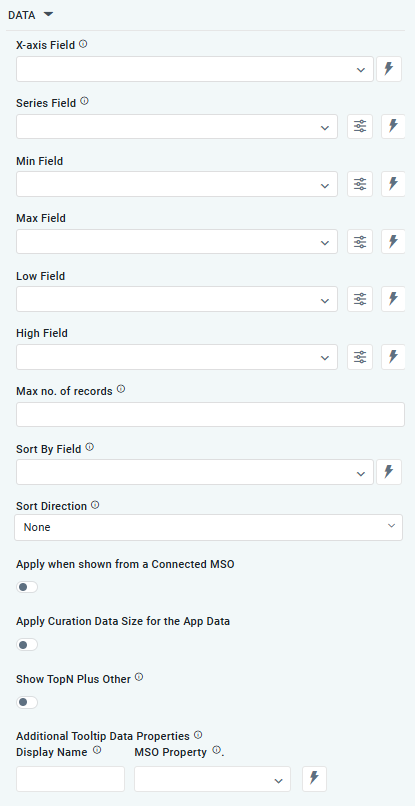

DATA
X-Axis Field	Dropdown w/Expression option		The X-axis Field allows the user to select the MSO Field Property to represent the X-axis values in the chart.

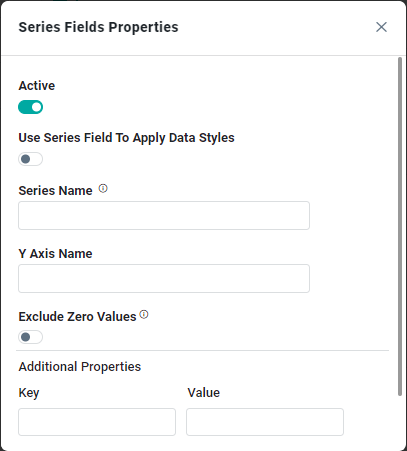

Series Field	Repeater Dropdown w/Additional Properties, Expression, and Color options		The Series Field allows the user to select an MSO Field Property to represent the Series Field.
… Use Series Field to Apply Data Styles	ON/OFF Toggle		The ON/OFF Toggle controls whether data styles are applied based on the series field: ON: Data styles will be applied dynamically according to the series field. OFF: Data styles will not be influenced by the series field.
… Series Name	Text Field		The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend
… Exclude Zero Values	ON/OFF Toggle	OFF	If enabled, zero values will be excluded. By default, this setting is disabled.
… Additional Properties	Key / Value - Text Fields		Optional Additional Properties - expressed as a Key/Value pair.
Min Field	Dropdown		The Min Field in a Boxplot Chart within curation refers to the field specifying the dataset's minimum value for each category or group.
… Series Name	Text Field		The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend.
Max Field	Dropdown		The Max Field in a Boxplot Chart within curation refers to the field specifying the dataset's minimum value for each category or group.
… Series Name	Text Field		The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend.
Low Field	Dropdown		The Low Field dropdown allows the user to select a value during the curation process, allowing the box plot to effectively illustrate the distribution of values and highlight key insights about the dataset's upper range.
… Series Name	Text Field		The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend.
High Field	Dropdown		The High Field dropdown allows the user to select a value during the curation process, allowing the box plot to effectively illustrate the distribution of values and highlight key insights about the dataset's upper range.
… Series Name	Text Field		The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend.
Max no. of records	Number Field		Option to set a Max number of records to be used by the chart.
Sort By Field	Dropdown w/Expression option		The Sort By Field option allows the user to select a field to sort the data and also provides the flexibility to define a custom expression for more advanced sorting criteria.
Sort Direction	Dropdown		Option to set Sort order for data in the Chart to either Ascending or Descending.
Base Series	Dropdown		The dropdown Base Series field allows the user to select an option relating to each series Field, such as Bell Curve, Histogram, Pareto.
Apply when shown from a Connected MSO	ON/OFF Toggle	OFF	The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO. ON: The feature or behavior is applied when the data originates from the connected MSO. OFF: The feature or behavior is not applied, regardless of the connected MSO.
Apply Curation Data Size for the App Data	ON/OFF Toggle	OFF	If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.
Show TopN plus Other	ON/OFF Toggle	OFF	If Show TopN plus Other is enabled, the App will display only the Top N records along with a single aggregated category representing all other records. The number of records shown for the Top N is determined by an MSO Setting in the Easy Answers section. If disabled, the App will display all records based on the user's query.
Additional Tooltip Data Properties	Display Name - Text Field MSO Property - Dropdown		The Additional Tooltip Data Properties allow the user to select one or more MSO Field Properties to display their values in the tooltip when the user hovers over a data point.

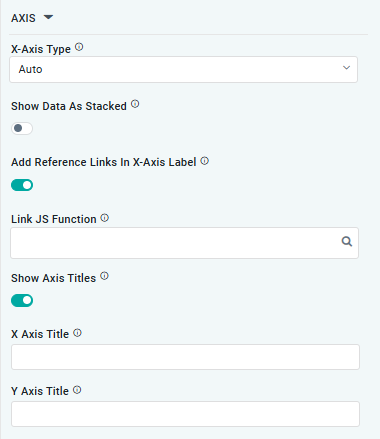

AXIS
X-Axis Type	Dropdown		Option to select the format of the X-Axis, including: Linear, Logarithmic, DateTime, Category, Color, BellCurve.
Add Reference Links in X-Axis Label	ON/OFF Toggle	OFF	If enabled, X-Axis labels will be converted into clickable links, with their content defined by the JavaScript in the Link JS Function. When disabled, the labels will not include links.
… Link JS Functions	Text field w/Search		The Link JS function allows the user to select from an existing JavaScript Function to be used to generate links for the X-Axis Labels
Show Axis Titles	ON/OFF Toggle	OFF	If enabled, titles can be added to both the X-Axis and Y-Axis. If disabled, the X-Axis and Y-Axis will not have titles.
… X-Axis Title	Text Field		Enter the Title for the X-Axis.
… Y-Axis Title	Text Field		Enter the Title for the Y-Axis.
DATA LABELS
None/Percentage/Value	Dropdown w/Additional Properties option	Show Percentage	Optional Additional Properties - expressed as a Key/Value pair.
… Additional Properties			Optional Additional Properties - expressed as a Key/Value pair.
Data Label JS Function	Text Field w/Search		The Data Label JS function allows the user to search for and define JavaScript functions that control the display or behavior of data labels in a chart.
Lazy Load Data Labels	ON/OFF Toggle	OFF	If enabled, the Boxplot Chart curation controls whether data labels are loaded gradually as the chart is interacted.

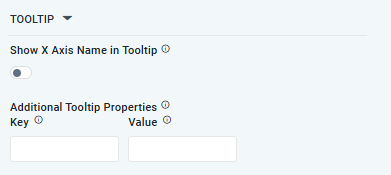

TOOLTIP
Show X-Axis Name in Tooltip	ON/OFF Toggle	OFF	If enabled, the tooltip displayed when hovering over data in the App will include the X-Axis name. If disabled, only the data value will be shown, without the X-Axis name
Additional Tooltip Properties	Key / Value - Text Fields		Optional Additional Tooltip Properties - expressed as a Key/Value pair.

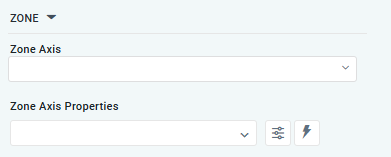

ZONE
Zone Axis	Dropdown		The Zone Axis dropdown allows the user to select different zones within the chart, often used for visual emphasis or categorization.
Zone Axis Properties	Dropdown w/Additional Properties and Expression options		The Zone Axis Properties dropdown allows the user to customize the properties of the Zone Axis in a Boxplot Chart,
… Zone Color	Text Field		The Zone color refers to the color applied to different zones within a chart.
… Additional Properties	Key / Value - Text Fields		Optional Additional Tooltip Properties - expressed as a Key/Value pair.

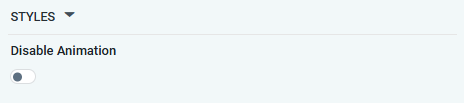

STYLES
Disable Animation	ON/OFF Toggle	OFF	If enabled, the Disable Animation toggle refers to turning off any animated transitions or effects when the chart or visualization is rendered or updated.

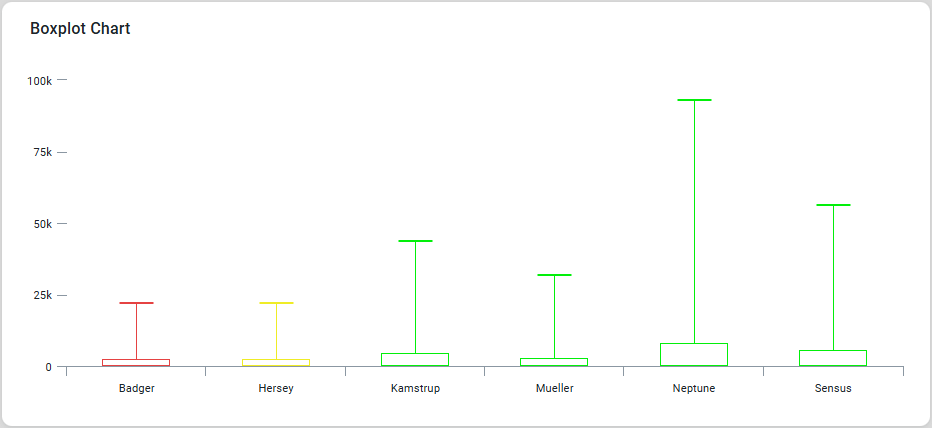

Examples of Curated Boxplot Chart
