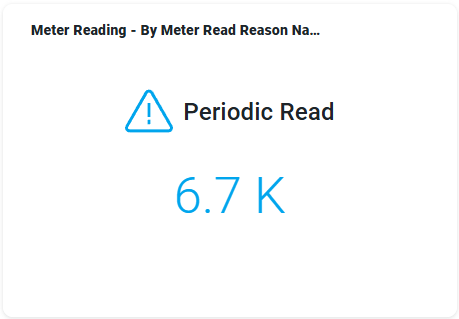

Curation - Cue Card

DATA

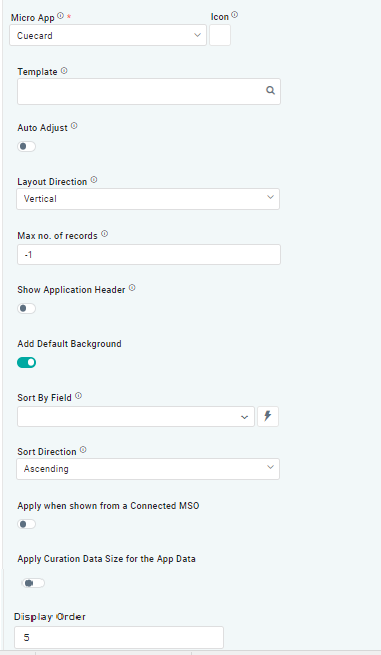

• Template

Select a preconfigured Cue Card / Infographics Template from the Search dialog.

• Layout Direction

Dropdown

Select a Layout Direction: Vertical or Horizontal. This is to support adjusting the rendering of the Cue Card / Infographics on both Desktop and Mobile devices.

• Max Number of Records

Number Field

Sets a limit for how many records will be used.

• Sort Direction

Sets the sorting order for data, including Ascending, Descending, or None. Only available for Infographics

• Auto Adjust

ON/OFF Toggle

If enabled, allows the user to specify the Width, Height, and Pagination Type for the Template. If disabled, provide the Layout Direction.

• Show Application Header

If enabled, the App will display the App Header with the Icon and Title. If disabled, only the visual component from the Template will be visible.

• Add Default Background

ON/OFF Toggle

If enabled, a default background will be applied to the visual component. When disabled, the visual component will have no background.

• Sort By Field

Dropdown w/Expression option

The Sort By Field allows the user to select an MSO Field Property to be used to Sort the data in the App.

• Apply when shown from a Connected MSO

ON/OFF Toggle

The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO.

• ON: The feature or behavior is applied when the data originates from the connected MSO.

• OFF: The feature or behavior is not applied, regardless of the connected MSO.

• Apply Curation Data Size Rules for the App Data

ON/OFF Toggle

If enabled, the Record Count rules are applied. If the criteria are not met, the series will not be displayed.

• Display Order

Number Field

The Display Order determines the priority or order in which grouped or categorized data is presented.
