Curation - Serverside Treemap Chart

Intended audience: END-USERS ANALYSTS DEVELOPERS ADMINISTRATORS

AO Platform: 4.3

Overview

This section provides an overview of a Serverside Treemap Chart. The Serverside Treemap Chart is a hierarchical data visualization tool that processes and aggregates data on the server before rendering it in the application. It displays data in the form of nested rectangles, where the size and color of each rectangle represent quantitative metrics.

Configuration of Serverside Treemap Chart

Properties

Label	Description

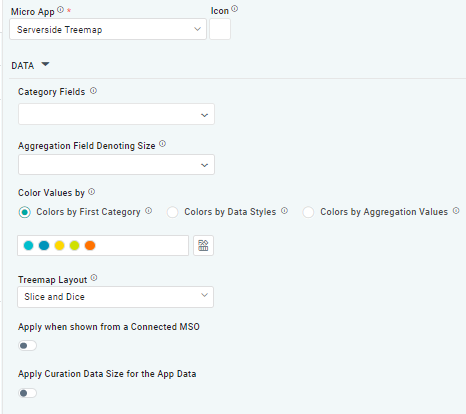

DATA
Category Fields	Dropdown w/Expression option	The Category Fields are columns or attributes in the dataset that represent the grouping levels in the treemap. Each field corresponds to a layer in the hierarchy, with higher-level categories nesting lower-level ones.
Aggregation Field Denoting Size	Dropdown w/Expression option	The Aggregation Field Denoting Size dropdown allows user to determine the size of each rectangle in the treemap. It typically represents a quantitative metric, and other numerical values, and is aggregated to calculate the total value for each category or subcategory.
Color Values by
Colors by First Category	Radio button	The Colors by First Category allows users to visually distinguish the main groups in the dataset at a glance while maintaining consistency across subcategories through inherited color shades or tones.
Colors by Data Styles	Radio button	The Colors by Data Styles refers to a feature where the color of each rectangle is determined by specific data values or styles applied to the dataset. This approach provides an additional layer of meaning to the visualization, allowing users to interpret the data more effectively based on color variations.
Colors by Aggregation Values	Radio button	The Colors by Aggregate Values refers to assigning colors to rectangles based on aggregated numerical values for each category or subcategory. This method uses aggregated data, such as totals, averages, or counts, to define the color intensity, gradient, or specific hues, visually representing the data's magnitude or category.
Enable Drilldown	ON/OFF Toggle	If enabled, allows user to drilldown to see group details in the treemap.
Treemap Layout	Dropdown	The Treemap Layout dropdown allows user to choose from layout options such as Slice and Dice, Stripes, Squarified, and Strip.
Apply when shown from a Connected MSO	ON/OFF Toggle	The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO. ON: The feature or behavior is applied when the data originates from the connected MSO. OFF: The feature or behavior is not applied, regardless of the connected MSO.
Apply Curation Data Size for the App Data	ON/OFF Toggle	If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.
Additional Tooltip Data Properties	Display Name - Text Field MSO Property - Dropdown	The Additional Tooltip Data Properties allows user to select one or more MSO Field Properties to display their values in the tooltip when the user hovers over a data point.

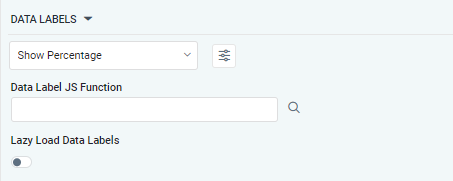

Lazy Load Data Labels	ON/OFF Toggle	If enabled, data labels are loaded gradually as the chart is rendered.

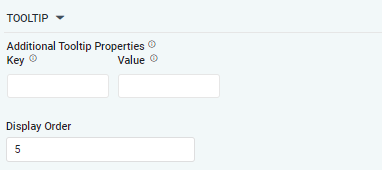

TOOLTIP
Additional Tooltip Properties	Key / Value - Text Fields	Optional Additional Tooltip Properties - expressed as a Key/Value pair.
Display Order	Number Field	The Display Order determines the priority or order in which grouped or categorized data is presented.

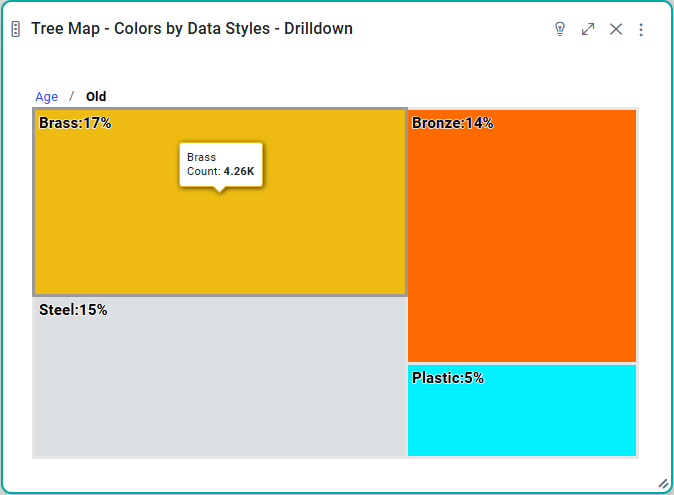

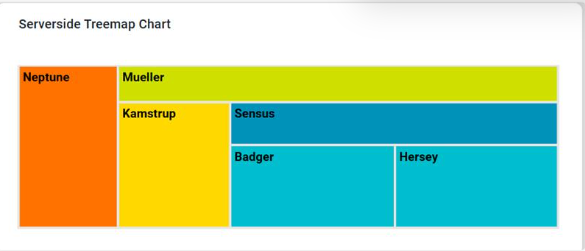

Examples of Curated Serverside Treemap Chart
