Curation - Serverside Treetable

Intended audience: END-USERS ANALYSTS DEVELOPERS ADMINISTRATORS

AO Platform: 4.3

Overview

This section offers an overview of the Serverside Treetable. The Serverside Treetable is a hierarchical data representation that organizes information in a tree-like structure, combining features of tables and trees. It is used to display structured data with parent-child relationships, where users can expand or collapse nodes to navigate through different levels of data.

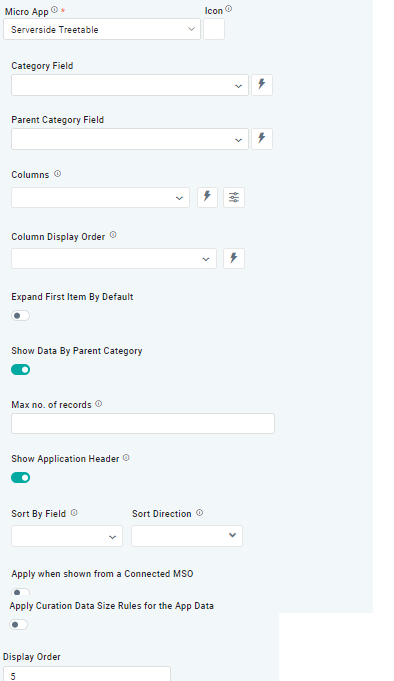

Configuration of Serverside Treetable

Properties

Label	UI Widget	Default	Description
DATA
Columns	Dropdown		The Column dropdown allows the user to select one or more MSO field properties to be included in the Serverside Treetable App.
Column Display Order	Number Field		The Column Display Order allows the user to select the display order for one or more selected MSO Field Properties.
Expand First Item By Default	ON/OFF Toggle	Disabled	If enabled, allows the user to expand the first item by default.
Show Data By Parent Category	ON/OFF Toggle	Enable	If enabled, allows the user to display data by parent category.
Max no. of records	Number Field		Option to set a Max number of records to be used by the Chart.
Show Application Header	ON/OFF Toggle	Enable	If enabled, the App will show the App Header with an Icon and Title. If disabled, only the visual component from the Template will be shown.
Sort By Field	Dropdown w/Expression option		The Sort By Field option allows users to select a field to sort the data and also provides the flexibility to define a custom expression for more advanced sorting criteria.
Sort Direction	Dropdown		Option to set Sort order for data in the Chart to either Ascending or Descending.
Apply when shown from a Connected MSO	ON/OFF Toggle		The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO. ON: The feature or behavior is applied when the data originates from the connected MSO. OFF: The feature or behavior is not applied, regardless of the connected MSO
Apply Curation Data Size for the App Data	ON/OFF Toggle		If enabled, the Record Count rules will be applied. The series will not be shown if the Record Count rules are not met.
Display Order	Number Field		The Display Order determines the priority or order in which grouped or categorized data is presented.

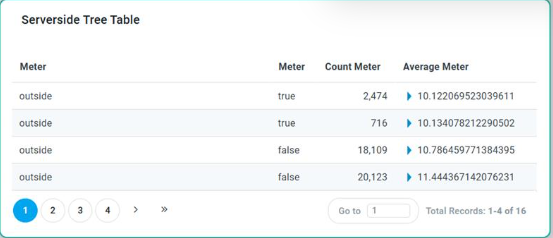

Examples of Curated Serverside Treetable
