Curation - Simple Datatable

• Columns

Dropdown w/Expression option

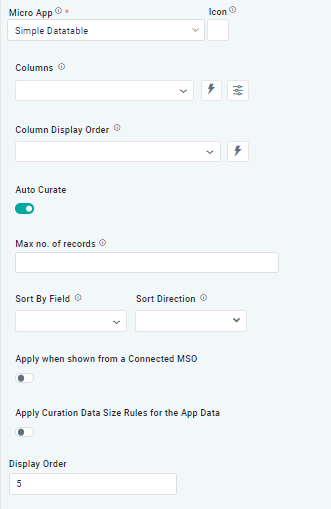

The Column dropdown allows the user to select one or more MSO Field Properties to be included in the Simple Datatable App.

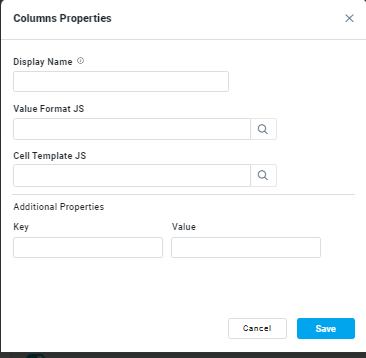

Column Properties

…Display Name

Text Field

The Display Name field displays the name.

…Value Format JS

The Value Format JS in a Simple Datatable allows users to apply custom JavaScript code to format the values displayed in the table.

…Cell Template JS

The Cell Template JS allows users to customize the appearance and content of individual cells in a Simple Datatable using JavaScript.

…Additional Properties

Key / Value - Text Fields

Optional Additional Properties - expressed as a Key/Value pair. Examples include:

• Alignment - Left/Right/Center

• Width - 150

• Column Display Order

The Column Display Order allows the user to select the display order for one or more selected MSO field properties.

• Auto Curate

ON/OFF Toggle

Enable

The Auto Curate Toggle allows the user to enable or disable automated data curation for a dataset. When enabled, the system applies predefined rules and logic to automatically process and organize the data. When disabled, users have full control and can manually curate the dataset.

• Show Application Header

ON/OFF Toggle

Disabled

If enabled, the App will show the App Header with an Icon and Title. If disabled, only the visual component from the Template will be shown.

• Apply when shown from a Connected MSO

• Sort By Field

Dropdown

The Sory By Field option allows the user to select a field to sort the data and also provides the flexibility to define a custom expression for more advanced sorting criteria.

• Sort Direction

Dropdown

Option to set the Sort order for data in the chart to either Ascending or Descending.

• Apply Curation Data Size Rules for the App Data

ON/OFF Toggle

Disabled

If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.

• Display Order

Number Field

The Display Order determines the priority or order in which grouped or categorized data is presented.
