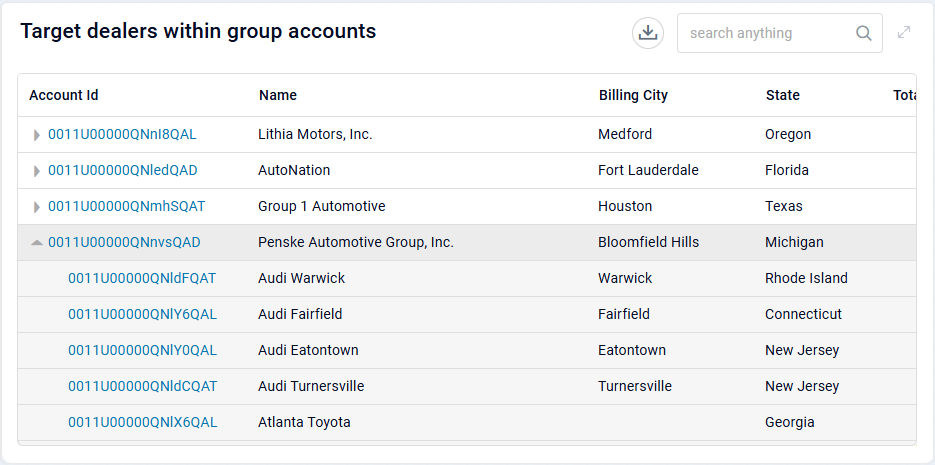

Curation - Simple Treetable

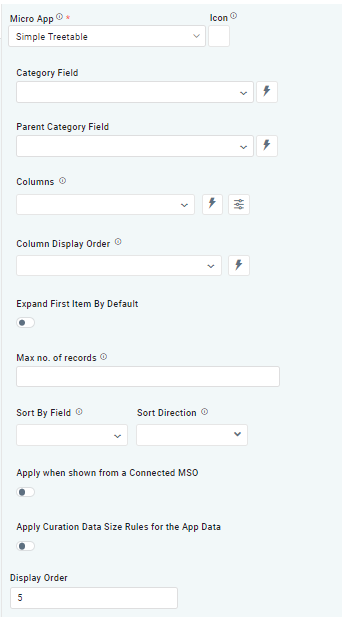

DATA

• Columns

Dropdown

The Column dropdown allows user to select one or more MSO field properties to be included in table App.

• Column Display Order

Number Field

The Column Display Order allows user to select the display order for one or more selected MSO Field Properties.

• Expand First Item By Default

ON/OFF Toggle

Disabled

If enabled, allows user to expand the first item by default.

• Show Data By Parent Category

ON/OFF Toggle

Enable

If enabled, allows user to display data by parent category.

• Max no. of records

Number Field

Option to set a Max number of records to be used by the Chart.

• Show Application Header

ON/OFF Toggle

Enable

If enabled, the App will show the App Header with an Icon and Title. If disabled, only the visual component from the Template will be shown.

• Sort By Field

Dropdown w/Expression option

The Sort By Field option allows users to select a field to sort the data and also provides the flexibility to define a custom expression for more advanced sorting criteria.

• Sort Direction

Dropdown

Option to set Sort order for data in the Chart to either Ascending or Descending.

• Apply when shown from a Connected MSO

ON/OFF Toggle

The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO.

• ON: The feature or behavior is applied when the data originates from the connected MSO.

• OFF: The feature or behavior is not applied, regardless of the connected MSO

• Apply Curation Data Size for the App Data

ON/OFF Toggle

If enabled, the Record Count rules will be applied. The series will not be shown if the Record Count rules are not met.

• Display Order

Number Field

The Display Order determines the priority or order in which grouped or categorized data is presented.
