Insights > Correlation (Categories)

Intended audience: END-USERS ANALYSTS DEVELOPERS ADMINISTRATORS

AO Platform: 4.3

Properties for Insights

Correlation (Categories)

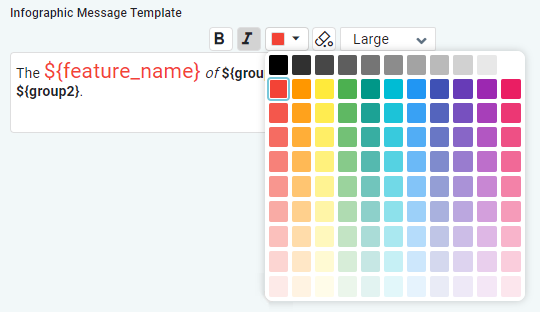

Formatting of Infographic Message Template

Some multi-line text field properties have additional formatting options. These properties are related to the Infographic card templates. Options include:

B - select some text, then click B to turn selected text Bold
I - select some text, then click I to turn selected text Italics
Color - select some text, then click dropdown to select a color
Clear - click to clear all existing formatting of the text
Font - select some text, then click dropdown to select font-size (small, medium, large)

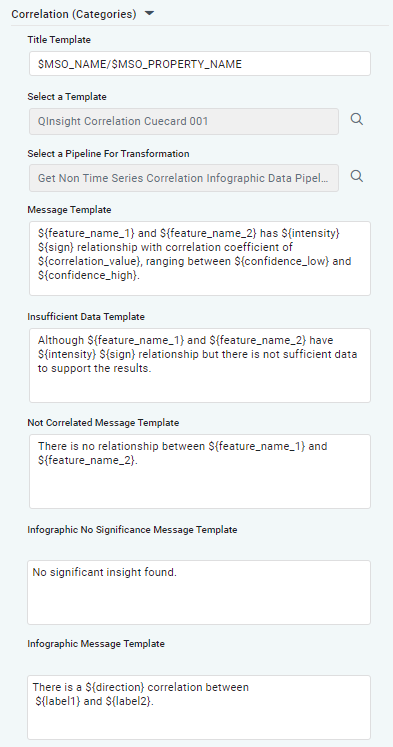

Label	Type	Default Value	Description
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Correlation Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Non Time Series Correlation Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Message Template	Multiline Text Field	${feature_name_1} and ${feature_name_2} have ${intensity} ${sign} relationship with correlation coefficient of ${correlation_value}, ranging between ${confidence_low} and ${confidence_high}.	Template for Textual Insight, including the data variables that will be added into template at runtime. Variables available ${feature_name_1} ${feature_name_2} ${intensity} ${sign} ${correlation_value} ${confidence_low} ${confidence_high}
Insufficient Data Template	Multiline Text Field	Although ${feature_name_1} and ${feature_name_2} have ${intensity} ${sign} relationship, but there is not sufficient data to support the results.	Template for Textual Insight, including the data variables that will be added into template at runtime. Variables available ${feature_name_1} ${feature_name_2} ${intensity} ${sign}
Not Correlated Message Template	Multiline Text Field	There is no relationship between ${feature_name_1} and ${feature_name_2}.	Template for Textual Insight, including the data variables that will be added into template at runtime. Variables available ${feature_name_1} ${feature_name_2}
Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Template for the Infographic card - no significance.
Infographic Message Template	Multiline Text Field with formatting options	There is a ${direction} correlation between ${label1} and ${label2}.	Template for the Infographic card.
