Insights > Outliers

Intended audience: END-USERS ANALYSTS DEVELOPERS ADMINISTRATORS

AO Platform: 4.3

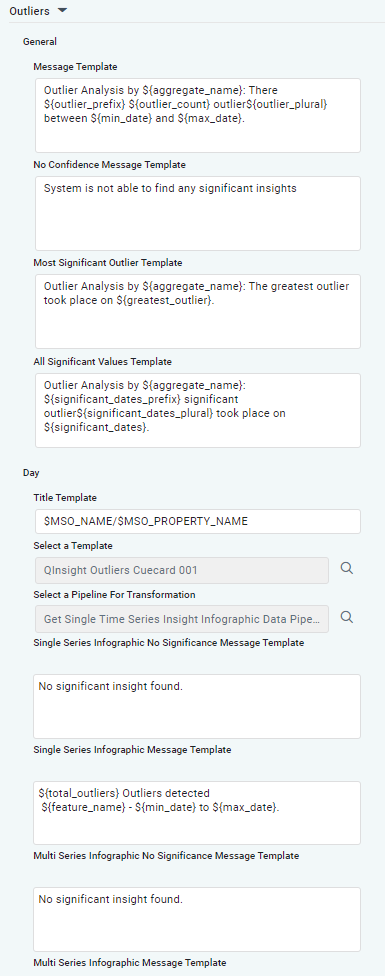

Properties for Insights > Outliers

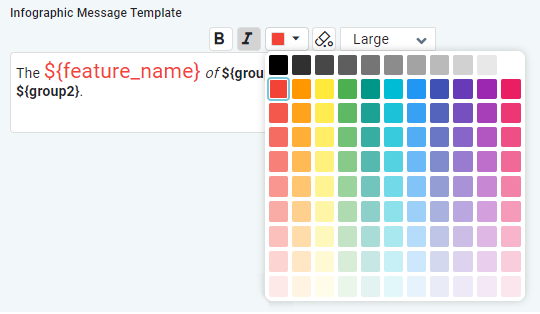

Formatting of Infographic Message Template

Some multi-line text field properties have additional formatting options. These properties are related to the Infographic card templates. Options include:

B - select some text, then click B to turn selected text Bold
I - select some text, then click I to turn selected text Italics
Color - select some text, then click dropdown to select a color
Clear - click to clear all existing formatting of the text
Font - select some text, then click dropdown to select font-size (small, medium, large)

Label	Type	Default Value	Description
Day
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Outliers Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Single Time Series Insight Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Single Series Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Single Series Template for the Infographic card - no significance.
Single Series Infographic Message Template	Multiline Text Field with formatting options	${total_outliers} Outliers detected ${feature_name} - ${min_date} to ${max_date}.	Single Series Template for the Infographic card.
Multi Series Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Multi Series Template for the Infographic card - no significance.
Multi Series Infographic Message Template	Multiline Text Field with formatting options	${total_outliers} Outliers detected ${feature_name} - ${min_date} to ${max_date}.	Multi Series Template for the Infographic card.
Week
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Outliers Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Single Time Series Insight Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Single Series Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Single Series Template for the Infographic card - no significance.
Single Series Infographic Message Template	Multiline Text Field with formatting options	${total_outliers} Outliers detected ${feature_name} - ${min_date} to ${max_date}.	Single Series Template for the Infographic card.
Multi Series Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Multi Series Template for the Infographic card - no significance.
Multi Series Infographic Message Template	Multiline Text Field with formatting options	${total_outliers} Outliers detected ${feature_name} - ${min_date} to ${max_date}.	Multi Series Template for the Infographic card.
Month
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Outliers Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Single Time Series Insight Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Single Series Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Single Series Template for the Infographic card - no significance.
Single Series Infographic Message Template	Multiline Text Field with formatting options	${total_outliers} Outliers detected ${feature_name} - ${min_date} to ${max_date}.	Single Series Template for the Infographic card.
Multi Series Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Multi Series Template for the Infographic card - no significance.
Multi Series Infographic Message Template	Multiline Text Field with formatting options	${total_outliers} Outliers detected ${feature_name} - ${min_date} to ${max_date}.	Multi Series Template for the Infographic card.
Quarter
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Outliers Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Single Time Series Insight Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Single Series Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Single Series Template for the Infographic card - no significance.
Single Series Infographic Message Template	Multiline Text Field with formatting options	${total_outliers} Outliers detected ${feature_name} - ${min_date} to ${max_date}.	Single Series Template for the Infographic card.
Multi Series Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Multi Series Template for the Infographic card - no significance.
Multi Series Infographic Message Template	Multiline Text Field with formatting options	${total_outliers} Outliers detected ${feature_name} - ${min_date} to ${max_date}.	Multi Series Template for the Infographic card.
Year
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Outliers Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Single Time Series Insight Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Single Series Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Single Series Template for the Infographic card - no significance.
Single Series Infographic Message Template	Multiline Text Field with formatting options	${total_outliers} Outliers detected ${feature_name} - ${min_date} to ${max_date}.	Single Series Template for the Infographic card.
Multi Series Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Multi Series Template for the Infographic card - no significance.
Multi Series Infographic Message Template	Multiline Text Field with formatting options	${total_outliers} Outliers detected ${feature_name} - ${min_date} to ${max_date}.	Multi Series Template for the Infographic card.
Message Template	Multiline Text Field	Outlier Analysis by ${aggregate_name}: There ${outlier_prefix} ${outlier_count} outlier${outlier_plural} between ${min_date} and ${max_date}.	Template for Textual Insight, including the data variables that will be added into template at runtime. Variables available ${aggregate_name} ${outlier_prefix} ${outlier_count} ${outlier_plural} ${min_date} ${max_date}
Most Significant Outlier Template	Multiline Text Field	Outlier Analysis by ${aggregate_name}: The greatest outlier took place on ${greatest_outlier}.	Template for Textual Insight, including the data variables that will be added into template at runtime. Variables available ${aggregate_name} ${greatest_outlier}
All Significant Values Template	Multiline Text Field	Outlier Analysis by ${aggregate_name}: ${significant_dates_prefix} significant outlier${significant_dates_plural} took place on ${significant_dates}.	Template for Textual Insight, including the data variables that will be added into template at runtime. Variables available ${aggregate_name} ${significant_dates_prefix} ${significant_dates_plural} ${significant_dates}
