Insights > Spatial Correlation
Intended audience: END-USERS ANALYSTS DEVELOPERS ADMINISTRATORS
AO Platform: 4.3
Properties for Insights
Spatial Correlation

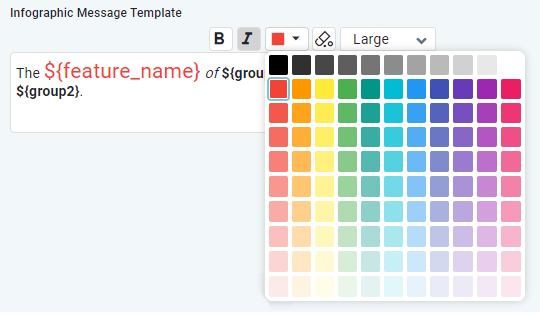

Formatting of Infographic Message Template
Some multi-line text field properties have additional formatting options. These properties are related to the Infographic card templates. Options include:
B - select some text, then click B to turn selected text Bold
I - select some text, then click I to turn selected text Italics
Color - select some text, then click dropdown to select a color
Clear - click to clear all existing formatting of the text
Font - select some text, then click dropdown to select font-size (small, medium, large)
Label | Type | Default Value | Description |
|---|---|---|---|
Title Template | Text Field | $MSO_NAME/$MSO_PROPERTY_NAME | Available variables
|
Select a Template | Search Dialog | QInsight Spatial Cuecard 003 | Use Search dialog to select a Quick Insight Template. |
Select a Pipeline for Transformation | Search Dialog | Get Spatial Correlation Infographic Data Pipeline | Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional). |
Message Template | Multiline Text Field | ${area1} has the ${highLowLabel} ${targetVar}, followed by ${hotspots} | Template for Textual Insight, including the data variables that will be added into template at runtime. Variables available
|
No Confidence Message Template | Multiline Text Field with formatting options | System is not able to find any significant insights | Template for No Confidence Message. |
Infographic No Significance Message Template | Multiline Text Field with formatting options | No significant insight found. | Template for the Infographic card - no significance. |

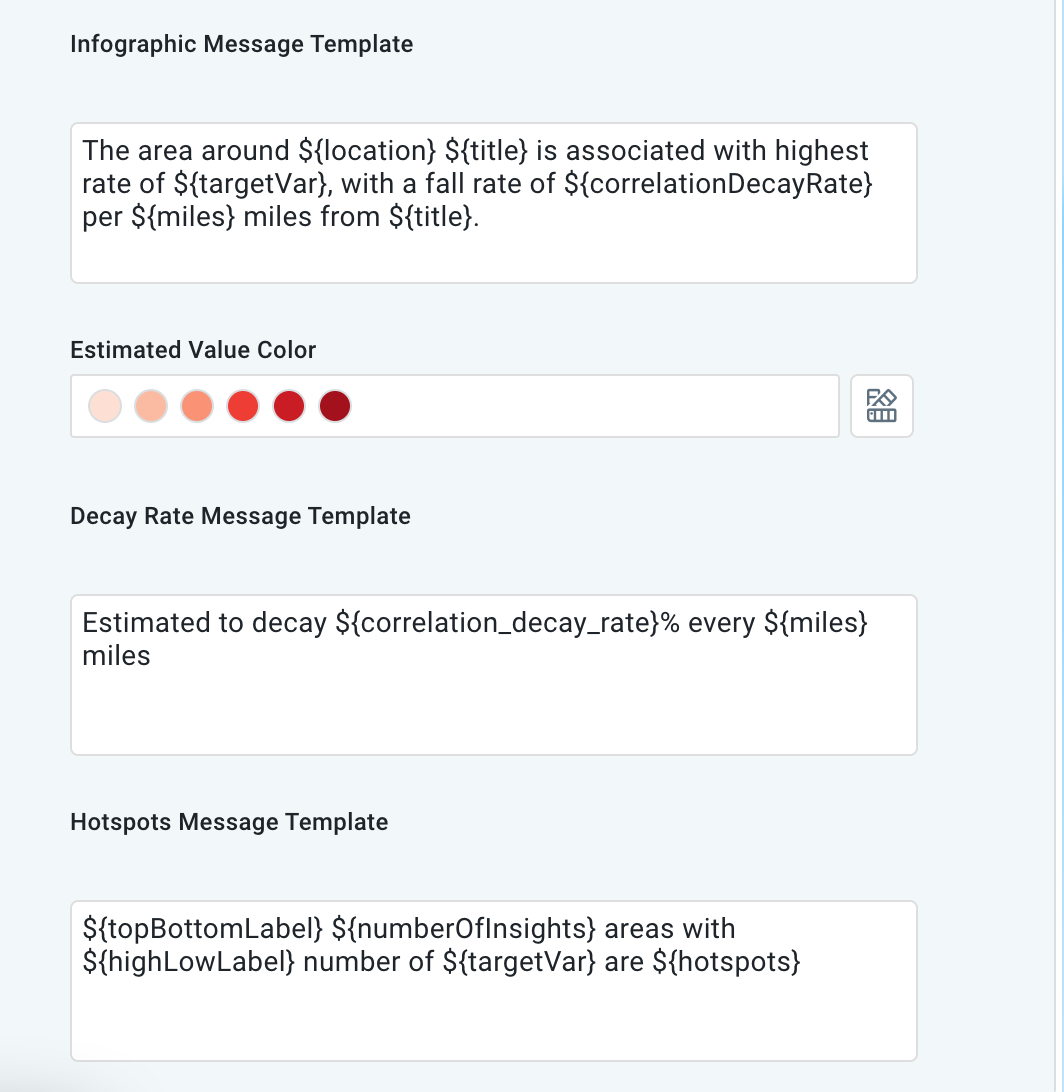

Infographic Message Template | Multiline Text Field with formatting options | ${title} area has ${highLowLabel} number of ${targetVar}. | Template for the Infographic card. |
Estimated Value Color | Color selection | Color selection for all Themes. | |
Decay Rate Message Template | Multiline Text Field with formatting options | Estimated to decay ${correlation_decay_rate}% every ${miles} miles | Template for Decay Rate Message. |
Hotspots Message Template | Multiline Text Field with formatting options | ${topBottomLabel} ${numberOfinsights} areas with ${highLowLabel} number of ${targetVar} are ${hotspots} | Template for Hotspots Message. |
