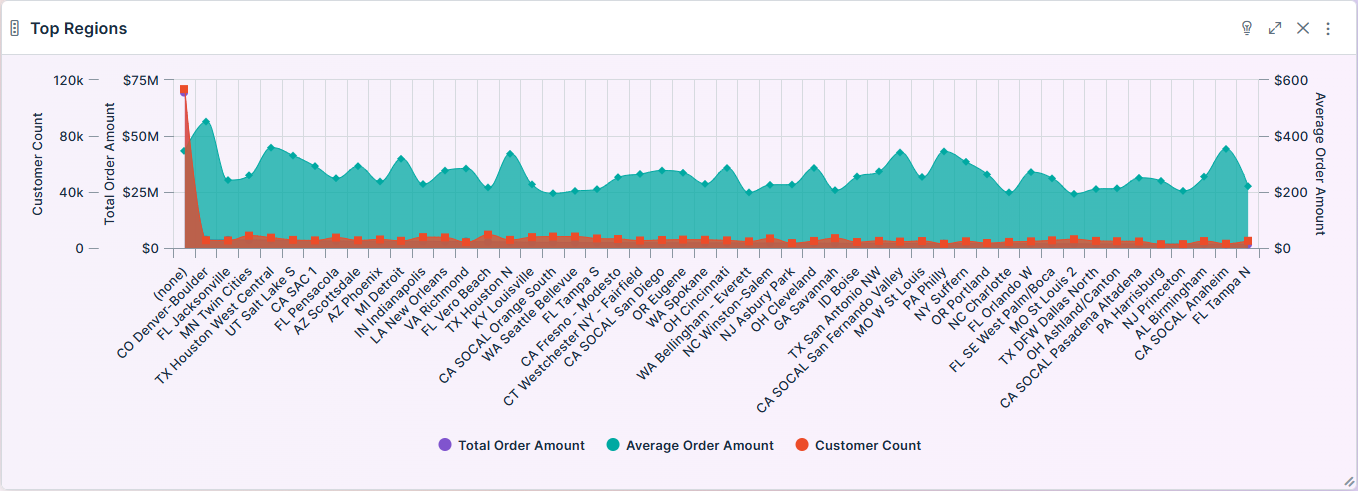

Curation - Area Range Chart

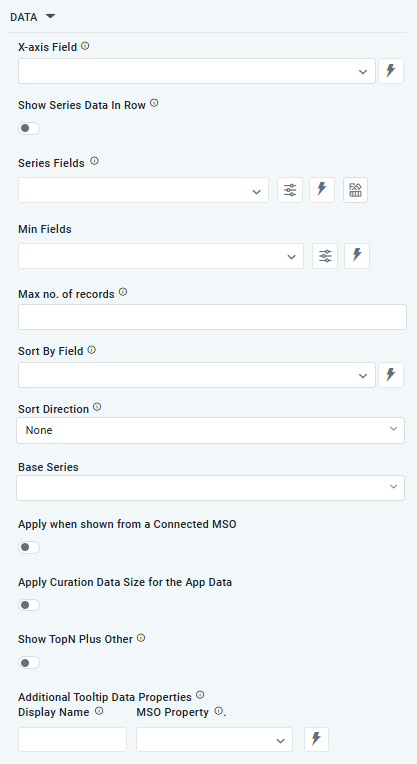

DATA

• X-Axis Field

Dropdown w/Expression option

The X-axis Field allows the user to select the MSO Field Property to represent the X-axis values in the chart.

• Show Series Data in Row

ON/OFF Toggle

OFF

If enabled, select a single Series Type and Series Field below. If disabled, choose one or more Series Fields below.

… Series Type Field

Dropdown w/Expression option

The Series Type Field dropdown in Area Range Chart curation allows users to specify a field that determines the type of series displayed in the chart. This property is only available if Show Series Data in Row is enabled.

… Colors

Text Field w/Color Palette option

The Colors allows the user to select which color to use for the area range of the chart. See Curation - Field Properties - Data Styles | Selection-of-Color. This property is only available if Show Series Data in Row is enabled.

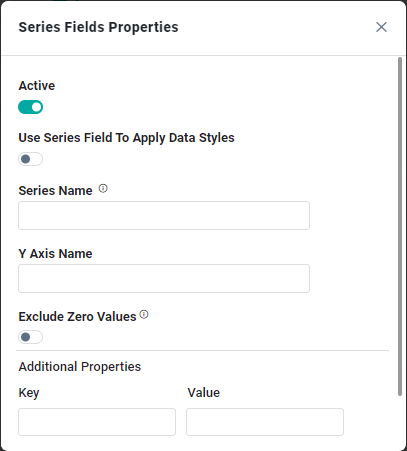

• Series Fields

Repeater Dropdown w/Additional Properties, Expression, and Color options

The Series Field allows the user to select an MSO Field Property to represent the Series Field.

… Active

ON/OFF Toggle

ON

If enabled, the feature or data series is active and will be applied or shown in the Area Range Chart.

… Use Series Field to Apply Data Styles

ON/OFF Toggle

OFF

The ON/OFF Toggle controls whether data styles are applied based on the series field:

• ON: Data styles will be applied dynamically according to the series field.

• OFF: Data styles will not be influenced by the series field.

… Series Name

Text Field

The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend.

… Y-Axis Name

Text Field

The Y-Axis Name field displays the name of Y-Axis.

… Exclude Zero Values

ON/OFF Toggle

 OFF

If enabled, zero values will be excluded. By default, this setting is disabled.

… Additional Properties

Key / Value - Text Fields

Optional Additional Properties - expressed as a Key/Value pair.

• Min Field

Dropdown w/Additional Properties and Expression options

The Min Field allows the user to select an MSO Field Property to represent the minimum values for the data in the Series.

… Series Names

Name / Display Name - Text Fields

The Series Name allows the user to enter Series Names that will be used to identify the data Series in the Legend.

• Max no. of records

Number Field

Option to set a Max number of records to be used by the chart.

• Sort By Field

Dropdown

The Sort By Field option allows users to select a field to sort the data and also provides the flexibility to define a custom expression for more advanced sorting criteria.

• Sort Direction

Dropdown

Option to set Sort order for data in the chart to either Ascending or Descending.

• Base Series

Dropdown

The dropdown Base Series field allows the user to select an option relating to each series Field, such as Bell Curve, Histogram, or Pareto.

• Apply when shown from a Connected MSO

ON/OFF Toggle

OFF

The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO.

• ON: The feature or behavior is applied when the data originates from the connected MSO.

• OFF: The feature or behavior is not applied, regardless of the connected MSO.

• Apply Curation Data Size for the App Data

ON/OFF Toggle

OFF

If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.

• Show TopN Plus Other

ON/OFF Toggle

OFF

If Show TopN plus Other is enabled, the App will display only the Top N records and a single aggregated category representing all other records. An MSO Setting determines the number of records shown for the Top N in the Easy Answers section. If disabled, the App will display all records based on the user's query.

• Additional Tooltip Data Properties

Display Name - Text Field

MSO Property - Dropdown

The Additional Tooltip Data Properties allow the user to select one or more MSO Field Properties to display their values in the tooltip when the user hovers over a data point.

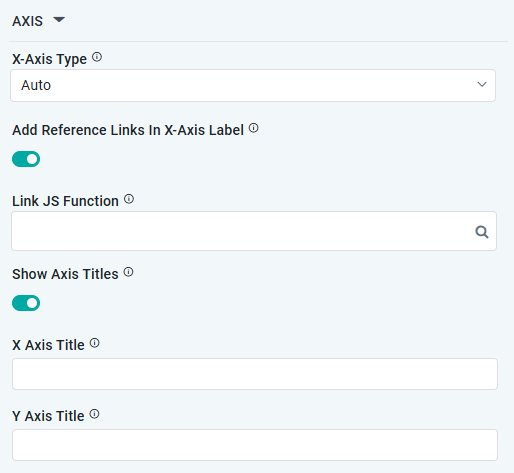

AXIS

• X-Axis Type

Dropdown

Option to select the format of the X-Axis, including: Linear, Logarithmic, DateTime, Category, Color, BellCurve.

• Add Reference Links in X-Axis Label

ON/OFF Toggle

OFF

If enabled, X-Axis labels will be converted into clickable links, with their content defined by the JavaScript in the Link JS Function. When disabled, the labels will not include links.

… Link JS Functions

Text Field w/Search

The Link JS function allows the user to select from an existing JavaScript Function to be used to generate links for the X-Axis Labels

• Show Axis Titles

ON/OFF Toggle

OFF

If enabled, titles can be added to both the X-Axis and Y-Axis. If disabled, the X-Axis and Y-Axis will not have titles.

… X-Axis Title

Text Field

Enter the Title for the X-Axis.

… Y-Axis Title

Text Field

Enter the Title for the Y-Axis.

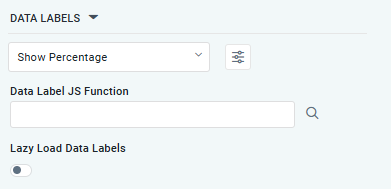

DATA LABELS

• None/Percentage/Value

Dropdown w/Additional Properties option

Show Percentage

Optional Additional Properties - expressed as a Key/Value pair.

… Additional Properties

Optional Additional Properties - expressed as a Key/Value pair.

• Data Label JS Function

Text Field w/Search

The Data Label JS function allows users to search for and define JavaScript functions that control the display or behavior of data labels in a chart.

• Lazy Load Data Labels

ON/OFF Toggle

OFF

If enabled, the Area Range Chart curation controls data labels are loaded gradually as the chart is interacted.

EVENTS

• On Click JS Function

Text Field w/Search

The On Click JS function allows users to search for and define JavaScript functions that control the behavior when the user clicks a data point in the chart. If left empty, the default behavior for the chart will be used.

• On Double Click JS Function

Text Field w/Search

The On Double Click JS function allows users to search for and define JavaScript functions that control the behavior when the user double clicks a data point in the chart. If left empty, the default behavior for the chart will be used.

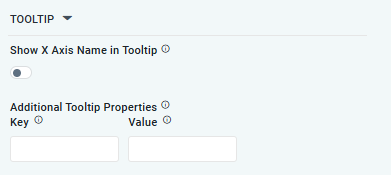

TOOLTIP

• Show X-Axis Name in Tooltip

ON/OFF Toggle

OFF

If enabled, the tooltip displayed when hovering over data in the App will include the X-Axis name. If disabled, only the data value will be shown, without the X-Axis name

• Additional Tooltip Properties

Key / Value - Text Fields

Optional Additional Tooltip Properties - expressed as a Key/Value pair.

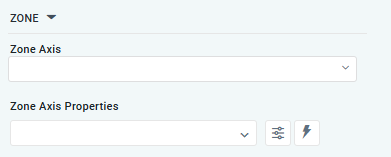

ZONE

• Zone Axis

Dropdown

The Zone Axis dropdown allows the user to select different zones within the chart, often used for visual emphasis or categorization.

• Zone Axis Properties

Dropdown w/Additional Properties and Expression options

The Zone Axis Properties dropdown allows users to customize the properties of the Zone Axis in an Area Range Chart,

… Zone Color

Text Field

The Zone Color refers to the color applied to different zones within a chart.

… Additional Properties

Key / Value - Text Fields

Optional Additional Tooltip Properties - expressed as a Key/Value pair.

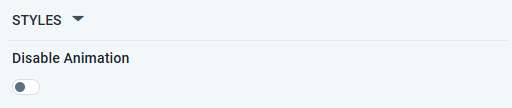

STYLES

• Disable Animation

ON/OFF Toggle

OFF

If enabled, the Disable Animation toggle refers to turning off any animated transitions or effects when the chart or visualization is rendered or updated.
