Curation - Error Bar Chart

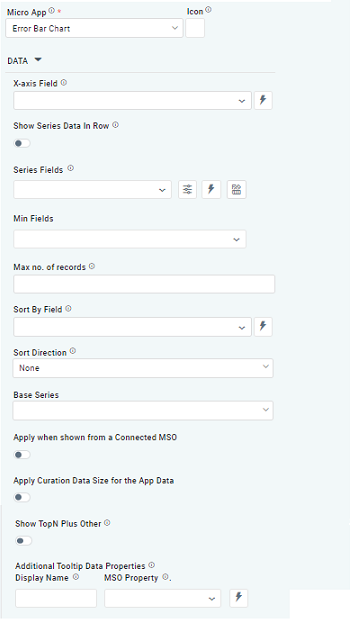

DATA

• X-axis Field

Dropdown w/Expression option

The X-axis Field allows the user to select the MSO Field Property to represent the X-axis values in the Chart.

• Show Series Data in Row

ON/OFF Toggle

If enabled, select a single Series Type and Series Field below. If disabled, select one or more Series Fields below.

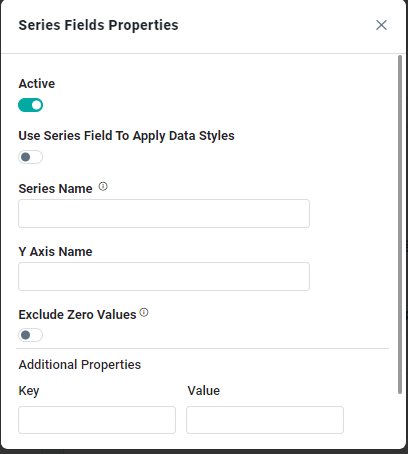

• Series Fields

Repeater Dropdown w/Additional Properties, Expression, and Color options

The Series Fields allows the user to select an MSO Field Property to represent the Series Field.

… Active

ON/OFF Toggle

If enabled, the feature or data series is active and will be applied or shown in the column chart.

… Use Series Field to Apply Data Styles

ON/OFF Toggle

The ON/OFF toggle refers to enabling or disabling the application of data styles to the series field.

… Series Name

Text Field

The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend

… Y-Axis Name

Text Field

The Y-Axis Name field displays the name of Y-Axis.

… Exclude Zero Values

ON/OFF Toggle

 OFF

If enabled, zero values will be excluded. By default, this setting is disabled.

… Additional Properties

Key / Value - Text Fields

Optional Additional Properties - expressed as a Key/Value pair.

• Series Type Field

Dropdown w/Expression option

The Series Type Field dropdown in area chart curation allows the user to specify a field that determines the type of series displayed in the chart.

• Series Field

Dropdown w/Additional Properties and Expression options

The Series Fields allows the user to select an MSO Field Property to represent the Series Field.

… Use Series Field to Apply Data Styles

ON/OFF Toggle

The Use Series Field to Apply Data Styles ON/OFF Toggle controls whether data styles are applied based on the series field:

• ON: Data styles will be applied dynamically according to the series field.

• OFF: Data styles will not be influenced by the series field.

… Series Names

Name / Display Name - Text Fields

The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend.

… Additional Properties

Key / Value - Text Fields

Optional Additional Properties - expressed as a Key/Value pair.

• Colors

Text Field w/Color Palette option

The Colors allows the user to select which color to use for the Error Bar Chart. See Curation - Field Properties - Data Styles | Selection-of-Color.

• Max no. of records

Number Field

Option to set a Max number of records to be used by the Chart.

• Sort By Field

Dropdown w/Expression option

The Sort By Field option allows the user to select a field to sort the data and also provides the flexibility to define a custom expression for more advanced sorting criteria.

• Sort Direction

Dropdown

Option to set Sort order for data in the Chart to either Ascending or Descending.

• Base Series

Dropdown

The dropdown Base Series field allows the user to select an option relating to each series Field, such as Bell Curve, Histogram, or Pareto.

• Apply when shown from a Connected MSO

ON/OFF Toggle

The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO.

• ON: The feature or behavior is applied when the data originates from the connected MSO.

• OFF: The feature or behavior is not applied, regardless of the connected MSO.

• Apply Curation Data Size for the App Data

ON/OFF Toggle

If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.

• Show TopN plus Other

ON/OFF Toggle

If Show TopN plus Other is enabled, the App will display only the Top N records along with a single aggregated category representing all other records. The number of records shown for the Top N is determined by an MSO Setting in the Easy Answers section. If disabled, the App will display all records based on the user's query.

• Additional Tooltip Data Properties

Display Name - Text Field

MSO Property - Dropdown

The Additional Tooltip Data Properties allows the user to select one or more MSO Field Properties to display their values in the tooltip when the user hovers over a data point.

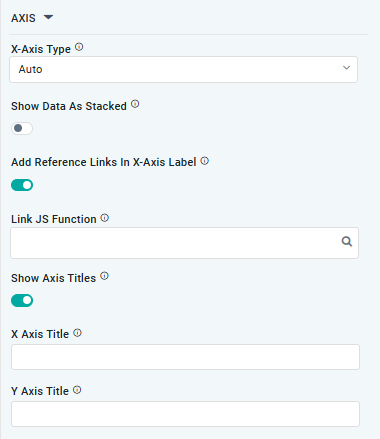

AXIS

• X-Axis Type

Dropdown

Option to select the format of the X-Axis, including Linear, Logarithmic, DateTime, Category, Color, and BellCurve.

• Show Data as Stacked

ON/OFF Toggle

If enabled, data for multiple series will be displayed as stacked for each X-Axis value. If disabled, the data will be shown as grouped.

• Add Reference Links in X-Axis Label

ON/OFF Toggle

If enabled, X-Axis labels will be converted into clickable links, with their content defined by the JavaScript in the Link JS Function. When disabled, the labels will not include links.

• Link Js Functions

The Link JS function allows the user to select from an existing JavaScript Function to be used to generate links for the X-Axis Labels

• Show Axis Titles

ON/OFF Toggle

If enabled, titles can be added to both the X-Axis and Y-Axis. If disabled, the X-Axis and Y-Axis will not have titles.

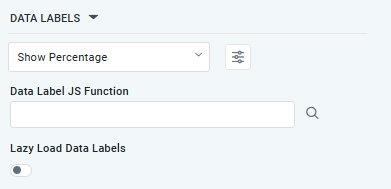

DATA LABELS

• None/Percentage/Value

Dropdown w/Additional Properties option

Optional Additional Properties - expressed as a Key/Value pair.

… Additional Properties

Optional Additional Properties - expressed as a Key/Value pair.

• Data Label JS Function

Text Field w/Search

The Data Label JS function allows the user to search for and define JavaScript functions that control the display or behavior of data labels in a chart.

• Lazy Load Data Labels

ON/OFF Toggle

If enabled, in the Error Bar Chart curation controls whether data labels are loaded gradually as the chart is interacted.

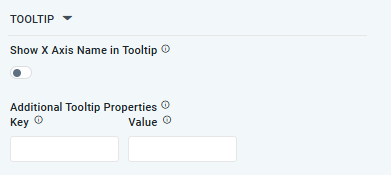

TOOLTIP

• Show X-Axis Name in Tooltip

ON/OFF Toggle

If enabled, the tooltip displayed when hovering over data in the App will include the X-Axis name. If disabled, only the data value will be shown, without the X-Axis name

• Additional Tooltip Properties

Key / Value - Text Fields

Optional Additional Tooltip Properties - expressed as a Key/Value pair.

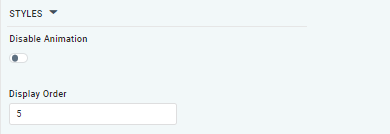

STYLES

• Disable Animation

ON/OFF Toggle

The Disable Animation toggle refers to turning off any animated transitions or effects that occur when the chart or visualization is rendered or updated.
