Curation - Multi XY Series Chart

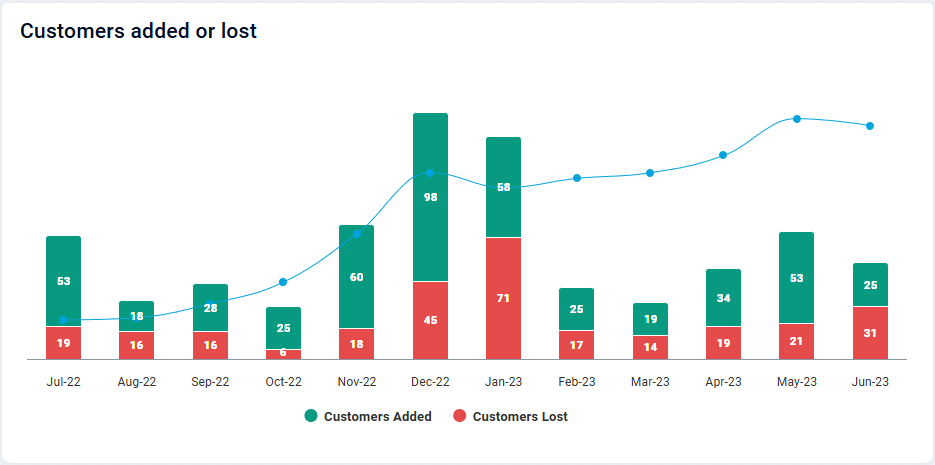

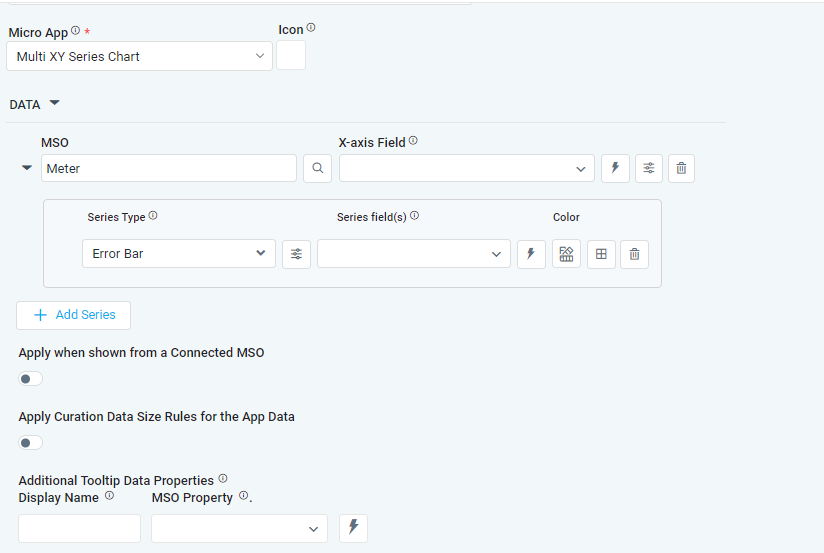

DATA

• MSO

• X-axis Field

Dropdown w/Expression option

The X-axis Field allows the user to select the MSO Field Property to represent the X-axis values in the Chart.

• Series Type Field

Dropdown w/Expression option

The Series Type Field dropdown in area chart curation allows the user to specify a field that determines the type of series displayed in the chart.

• Series Field

Dropdown w/Additional Properties and Expression options

The Series Field allows the user to select an MSO Field Property to represent the Series Field.

… Exclude Zero Values

ON/OFF Toggle

If enabled, zero values will be excluded. By default, this setting is disabled.

Additional Properties

Key / Value - Text Fields

Optional Additional Properties - expressed as a Key/Value pair.

• Colors

Text Field w/Color Palette option

The Colors allows the user to select which color to use for the multi XY series. See Curation - Field Properties - Data Styles | Selection-of-Color.

• Delete Series

The Delete a series in a chart, allows the user to delete the associated data series from the chart configuration

• Apply When Whown from a Connected MSO

ON/OFF Toggle

The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO.

• ON: The feature or behavior is applied when the data originates from the connected MSO.

• OFF: The feature or behavior is not applied, regardless of the connected MSO.

• Apply Curation Data Size for the App Data

ON/OFF Toggle

If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.

• Additional Tooltip Data Properties

Display Name - Text Field

MSO Property - Dropdown

The Additional Tooltip Data Properties allows the user to select one or more MSO Field Properties to display their values in the tooltip when the user hovers over a data point.

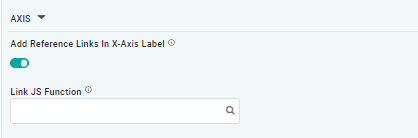

AXIS

• Add Reference Links in X-Axis Label

ON/OFF Toggle

• Link JS Functions

 Text Field w/Search

The Link JS function allows the user to select from an existing JavaScript Function to be used to generate links for the X-Axis Labels

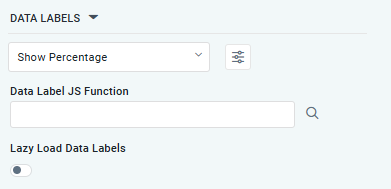

DATA LABELS

• None/Percentage/Value

Dropdown w/Additional Properties option

Optional Additional Properties - expressed as a Key/Value pair.

… Additional Properties

Optional Additional Properties - expressed as a Key/Value pair.

• Data Label JS Function

Text Field w/Search

The Data Label JS function allows the user to search for and define JavaScript functions that control the display or behavior of data labels in a chart.

• Lazy Load Data Labels

ON/OFF Toggle

If enabled, in the chart curation controls whether data labels are loaded gradually as the chart is interacted.

TOOLTIP

• Show X-Axis Name in Tooltip

• Additional Tooltip Properties

Optional Additional Properties - expressed as a Key/Value pair.

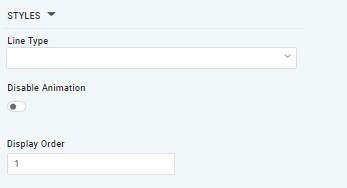

STYLES

• Line Style

Dropdown

• Disable Animation

ON/OFF Toggle

The Disable Animation toggle refers to turning off any animated transitions or effects when the chart or visualization is rendered or updated.
