Curation - Pie Chart

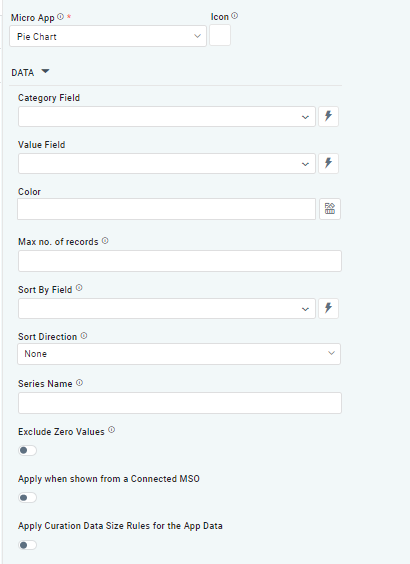

DATA

• Category Field

Dropdown w/Expression option

The Category Field dropdown allows the user to select the category.

…Display Name

• Value Field

Dropdown w/Expression option

The Value Field dropdown allows the user to select a value.

… Display Name

• Color

Text Field w/Color Palette option

The Colors allows the user to select which color to use for the segments in the Pie Chart. See Curation - Field Properties - Data Styles | Selection-of-Color.

• Max no. of records

Number Field

Option to set a Max number of records to be used by the chart.

• Sort By Field

Dropdown w/Expression option

The Sort By Field option allows the user to select a field to sort the data and also provides the flexibility to define a custom expression for more advanced sorting criteria.

• Sort Direction

Dropdown

Option to set Sort order for data in the chart to either Ascending or Descending.

• Series Name

Text Field

The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend.

• Exclude Zero Values

ON/OFF Toggle

OFF

If enabled, zero values will be excluded. By default, this setting is disabled.

• Apply when shown from a Connected MSO

ON/OFF Toggle

OFF

The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO.

• ON: The feature or behavior is applied when the data originates from the connected MSO.

• OFF: The feature or behavior is not applied, regardless of the connected MSO.

• Apply Curation Data Size Rules for the App Data

ON/OFF Toggle

 OFF

If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.

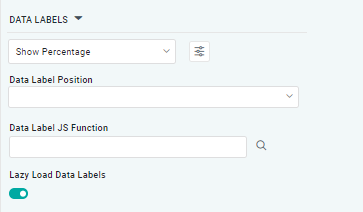

DATA LABELS

• None/Percentage/Value

Dropdown w/Additional Properties option

Optional Additional Properties - expressed as a Key/Value pair.

… Additional Properties

Optional Additional Properties - expressed as a Key/Value pair.

• Data Label JS Function

Text Field w/Search

The Data Label JS function allows the user to search for and define JavaScript functions that control the display or behavior of data labels in a chart.

• Lazy Load Data Labels

ON/OFF Toggle

OFF

If enabled, in the Pie Chart curation controls whether data labels are loaded gradually as the chart is interacted.

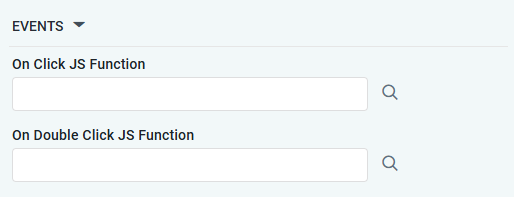

EVENTS

• On Click JS Function

Text Field w/Search

The On Click JS function allows users to search for and define JavaScript functions that control the behavior when the user clicks a data point in the chart. If left empty, the default behavior for the chart will be used.

• On Double Click JS Function

Text Field w/Search

The On Double Click JS function allows users to search for and define JavaScript functions that control the behavior when the user double clicks a data point in the chart. If left empty, the default behavior for the chart will be used.

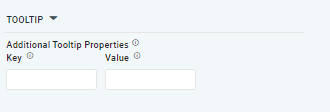

TOOLTIP

• Additional Tooltip Properties

Key / Value - Text Fields

Optional Additional Tooltip Properties - expressed as a Key/Value pair.

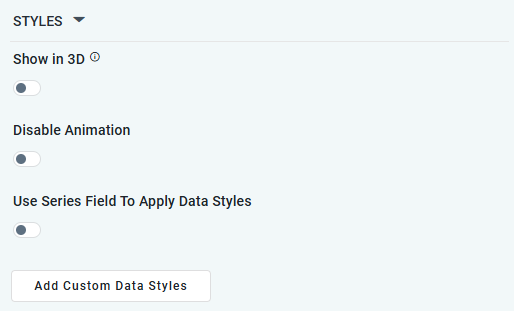

STYLES

• Show in 3D

ON/OFF Toggle

OFF

If enabled, shows the funnel Chart a 3D chart shows the Pie Chart with some depth and at a rotated angle.

• Disable Animation

ON/OFF Toggle

OFF

The Disable Animation toggle refers to turning off any animated transitions or effects when the chart or visualization is rendered or updated.

• Use Series Field to Apply Data Styles

ON/OFF Toggle

OFF

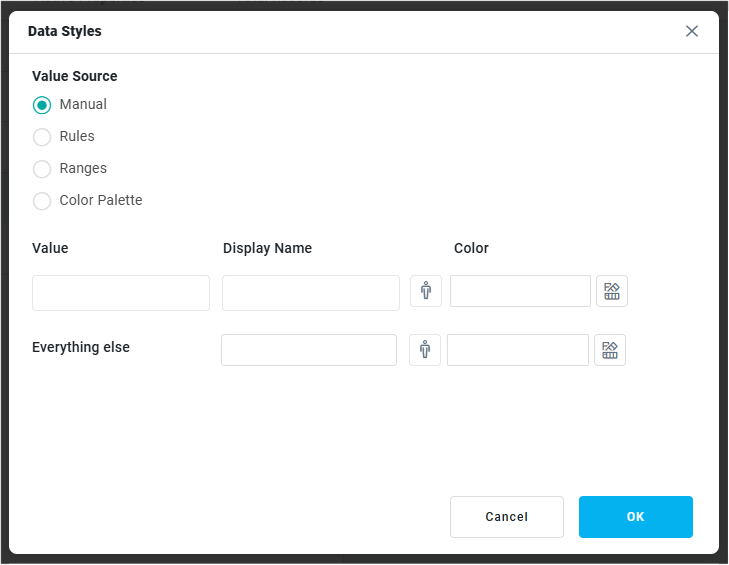

• Add Custom Data Styles

Button

Opens a dialog to allow the user to create Data Styles using Manual, Rules, Ranges or Color Palette configurations for value source. This dialog is equivalent to the Data Styles dialog when configuring MSO Field Properties.

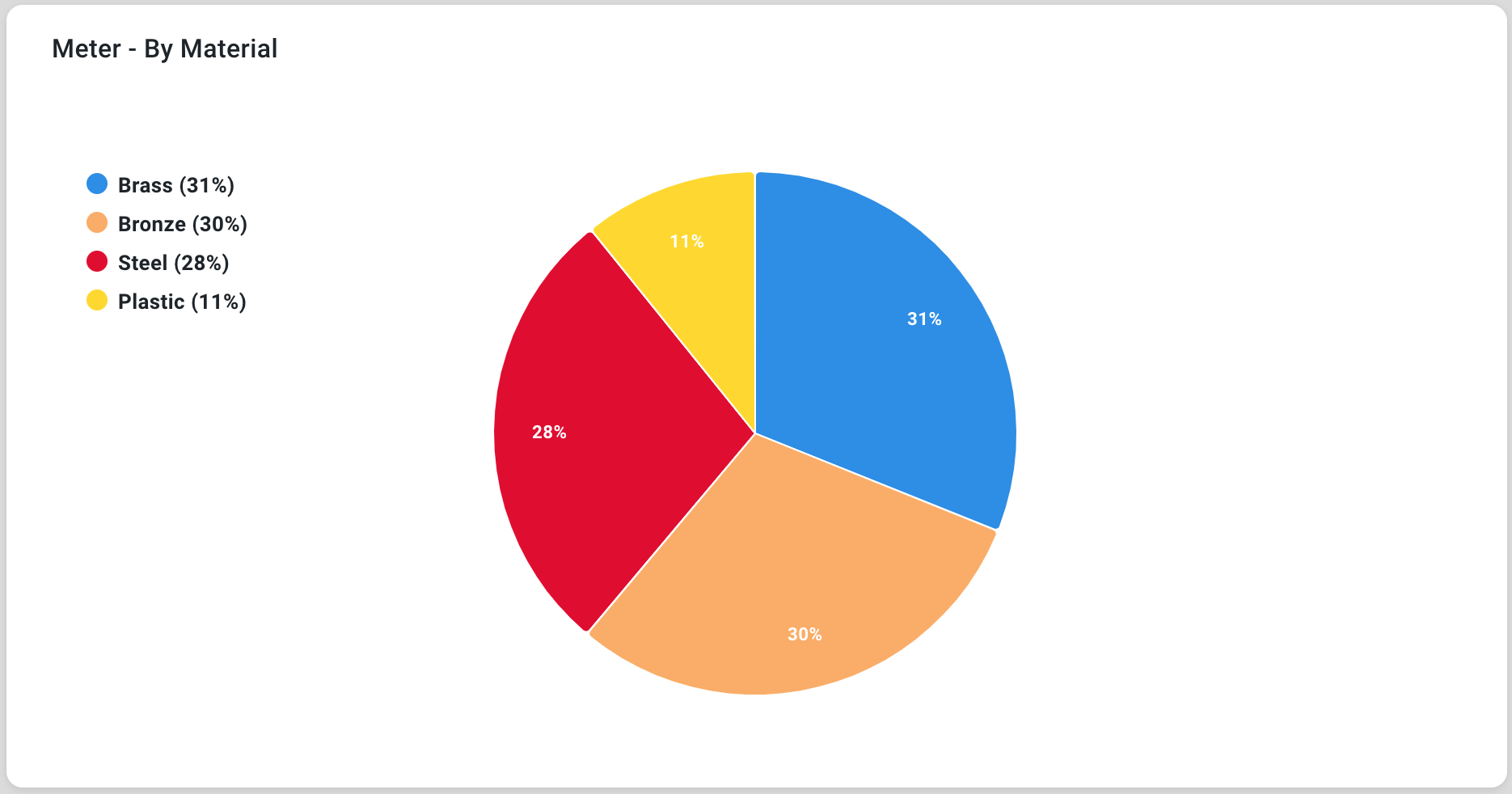

• Start Angle

Number Field

-180

A Start Angle of -180 makes the Pie Chart start at “6 o’clock” and draws the chart clockwise. -90 starts at “9 o’clock”.

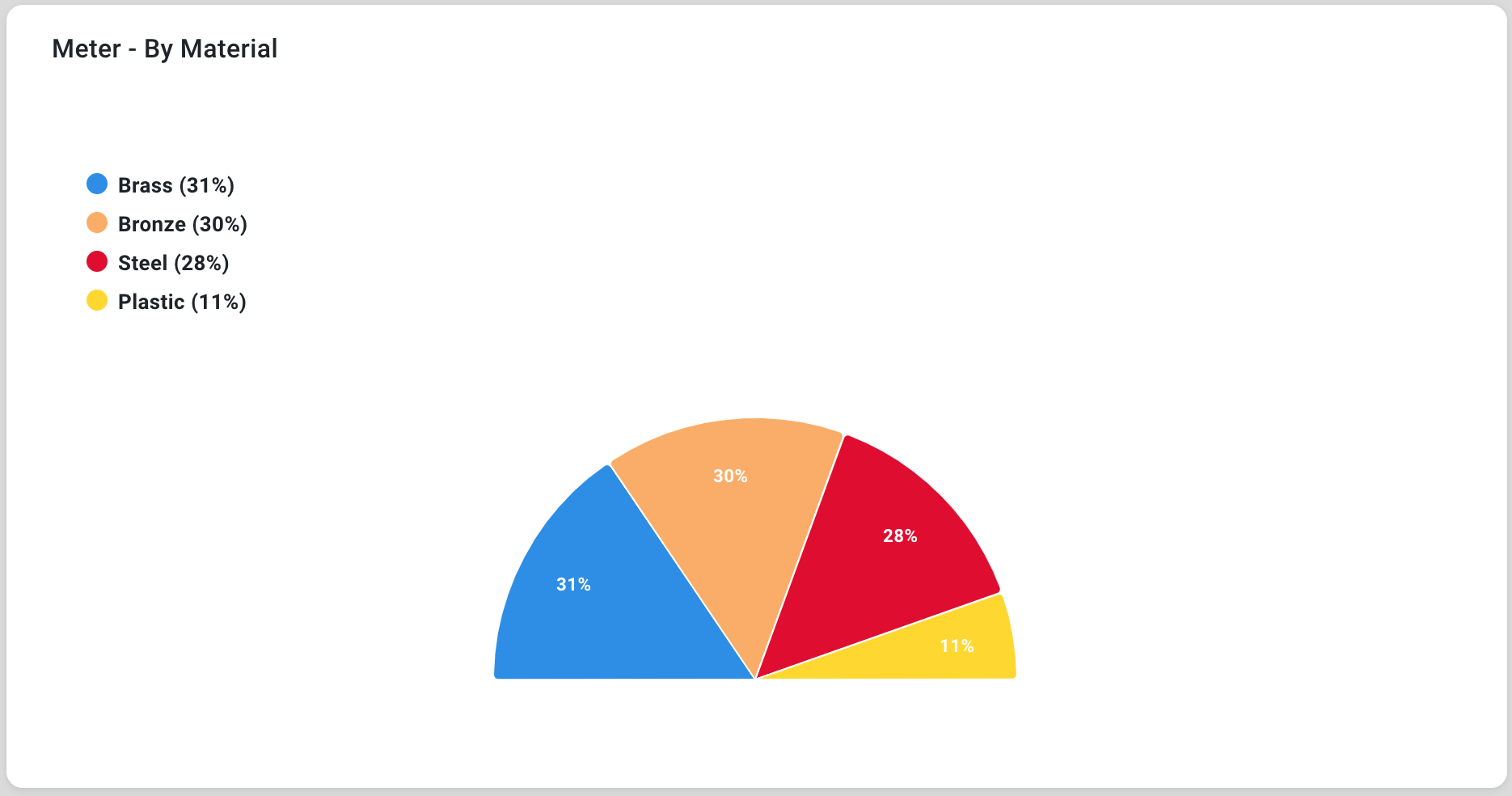

• End Angle

Number Field

+180

An End Angle of +180 makes the Pie Chart end at “6 o’clock”. +90 ends at “3 o’clock”.

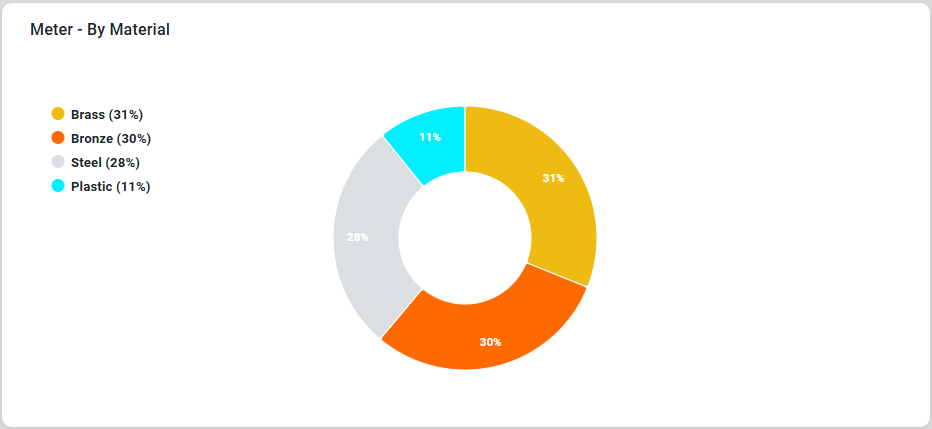

• Inner Size

Number Field

0%

An Inner Size of 0% means the Pie Chart draws the segments from the center. At 50% the Pie Chart becomes a Donut Chart, ie with a big whole in the middle.

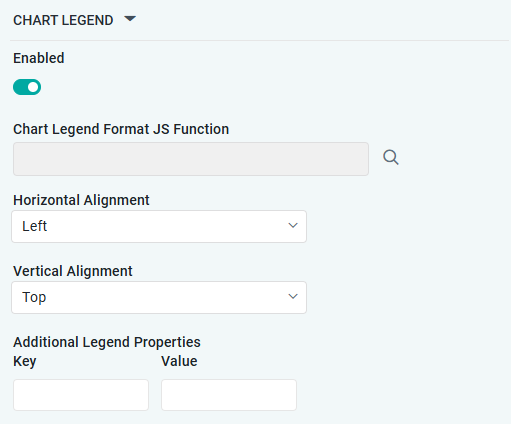

CHART LEGEND

• Enabled

ON/OFF Toggle

ON

If enabled, the chart will include a chart legend showing what the color values show in the Heatmap Chart.

• Chart Legend Format JS Function

Text Field w/Search

• Horizontal Alignment

Dropdown

Left

Select the horizontal alignment, including Left, Center, or Right.

• Vertical Alignment

Dropdown

Top

Select the vertical alignment, including Top, Middle, or Bottom.

• Additional Legend Properties

Optional Additional Properties - expressed as a Key/Value pair.
