Curation - Pyramid Chart

Intended audience: END-USERS ANALYSTS DEVELOPERS ADMINISTRATORS

AO Platform: 4.3

Overview

This section provides an overview of a Pyramid Chart. A Pyramid Chart is a triangular chart representing data in hierarchical or proportional order. It is designed to visualize data distribution across different levels, with the largest values at the base and progressively smaller values toward the apex.

Configuration of Pyramid Chart

Properties

Label	Description

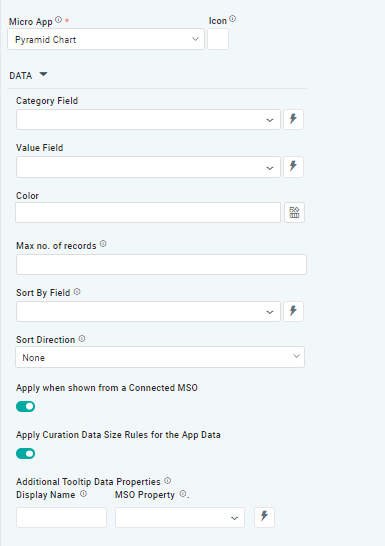

DATA
Category Field	Dropdown w/Expression option		The Category Field dropdown allows the user to select the category.
Value Field	Dropdown w/Expression option		The Value Field dropdown allows the user to select a value.
Color	Text Field w/Color Palette option		The Colors allows the user to select which color to use for the Pyramid Chart. See Curation - Field Properties - Data Styles \| Selection-of-Color.
Max no. of records	Number Field		Option to set a Max number of records to be used by the chart.
Sort By Field	Dropdown w/Expression option		The Sort By Field option allows users to select a field to sort the data and provides the flexibility to define a custom expression for more advanced sorting criteria.
Sort Direction	Dropdown		Option to set Sort order for data in the chart to either Ascending or Descending.
Excluse Zero Values	ON/OFF Toggle	OFF
Apply when shown from a Connected MSO	ON/OFF Toggle	OFF	The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO. ON: The feature or behavior is applied when the data originates from the connected MSO. OFF: The feature or behavior is not applied, regardless of the connected MSO.
Apply Curation Data Size Rules for the App Data	ON/OFF Toggle	OFF	If enabled, the Record Count rules will be applied. The series will not be shown if the Record Count rules are not met.
Additional Tooltip Data Properties	Display Name - Text Field MSO Property - Dropdown		The Additional Tooltip Data Properties allows the user to select one or more MSO Field Properties to display their values in the tooltip when the user hovers over a data point.

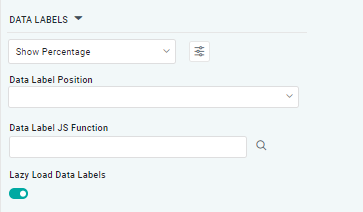

DATA LABELS
None/Percentage/Value	Dropdown w/Additional Properties option		Optional Additional Properties - expressed as a Key/Value pair.
… Additional Properties			Optional Additional Properties - expressed as a Key/Value pair.
Data Label JS Function	Text Field w/Search		The Data Label JS function allows the user to search for and define JavaScript functions that control the display or behavior of data labels in a chart.
Lazy Load Data Labels	ON/OFF Toggle	OFF	If enabled, in the Pyramid Chart curation controls whether data labels are loaded gradually as the chart is interacted.

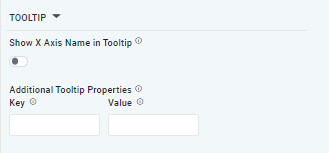

TOOLTIP
Show X-Axis Name in Tooltip	ON/OFF Toggle	OFF	If enabled, the tooltip displayed when hovering over data in the App will include the X-Axis name. If disabled, only the data value will be shown, without the X-Axis name
Additional Tooltip Properties	Key / Value - Text Fields		Optional Additional Tooltip Properties - expressed as a Key/Value pair.

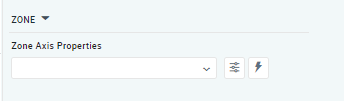

ZONE
Zone Axis Properties	Dropdown w/Additional Properties and Expression options		The Zone Axis Properties dropdown allows the user to customize the properties of the Zone Axis in an area chart,

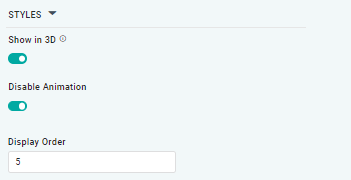

STYLES
Show in 3D	ON/OFF Toggle	OFF	If enabled, shows the funnel Chart a 3D chart shows the Pyramid Chart with some depth and at a rotated angle.
Disable Animation	ON/OFF Toggle	OFF	The Disable Animation toggle refers to turning off any animated transitions or effects that occur when the chart or visualization is rendered or updated.
Use Series Field to Apply Data Styles	ON/OFF Toggle	OFF

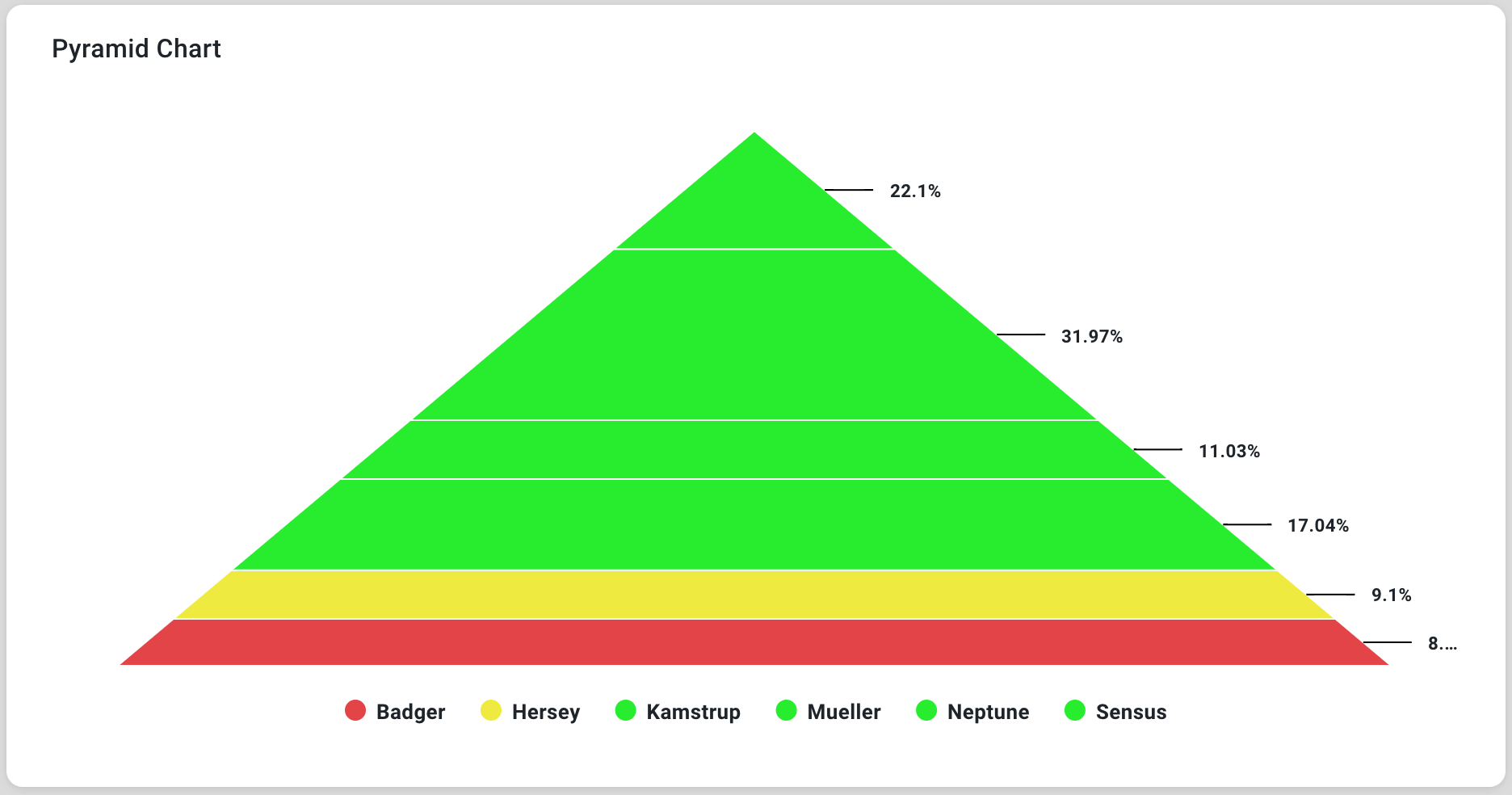

Examples of Curated Pyramid Chart
