Curation - Serverside Calendar Heatmap Chart

Intended audience: END-USERS ANALYSTS DEVELOPERS ADMINISTRATORS

AO Platform: 4.3

Overview

This section provides an overview of the Serverside Calendar Heatmap Chart for a Curation Micro Application. Server-Side Calendar Heatmap Chart is a data visualization tool that displays values in a calendar-like grid, where each cell represents a specific period and is color-coded to reflect data intensity. This server-side implementation is designed for handling large datasets efficiently, as data processing and aggregation are performed on the server before being displayed in the chart.

Configuration of Serverside Calendar Heatmap Chart

Properties

Label	Description
DATA
Time Field	Dropdown w/Expression option		The Time Field allows users to specify a column or attribute in the dataset that holds temporal information, such as dates or timestamps. This field is used to map and plot data on the heatmap in a calendar-style layout.
Value Field	Dropdown w/Expression option		The Value Field allows users to specify a column or attribute in the dataset that contains numerical or quantitative data. These values determine the intensity or color gradient of each cell in the calendar heatmap.
Group by Field	Dropdown w/Expression option		The Group By Field allows users to specify a column or attribute in the dataset that defines categories, groups, or labels for the data points. Grouping data enables the chart to display variations across categories within the calendar layout
Color	Text Field w/Color Palette option		The Colors allows user to select which color to use for the chart. See Curation - Field Properties - Data Styles \| Selection-of-Color.
Max no. of records	Number Field		Option to set a Max number of records to be used by the chart.
Apply when shown from a Connected MSO	ON/OFF Toggle	Enabled	If enabled, the Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO. ON: The feature or behavior is applied when the data originates from the connected MSO. OFF: The feature or behavior is not applied, regardless of the connected MSO.
Apply Curation Data Size Rules for the App Data	ON/OFF Toggle	Enabled	If enabled, the Record Count rules are applied. If the criteria are not met, the series will not be displayed.

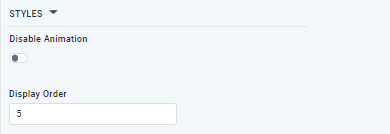

STYLES
Disable Animation	ON/OFF Toggle	Enabled	The Disable Animation toggle refers to turning off any animated transitions or effects when the chart or visualization is rendered or updated.

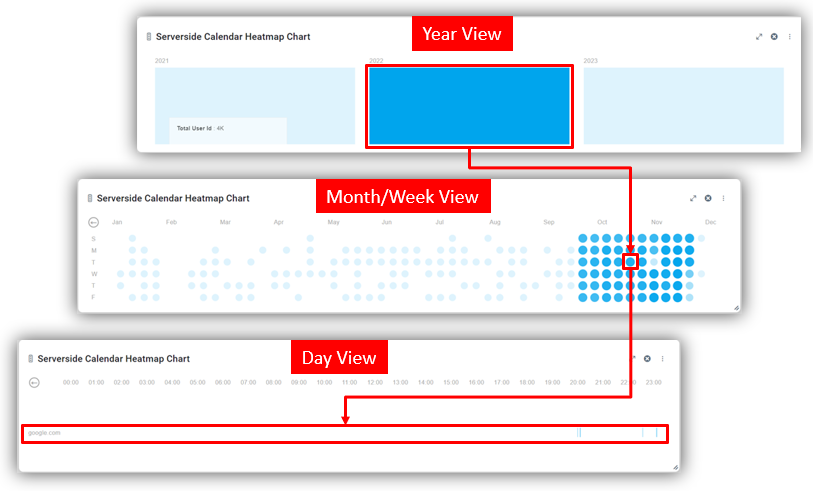

Examples of Curated Serverside Calendar Heatmap Chart
