Curation - Variable Pie Chart
Intended audience: END-USERS ANALYSTS DEVELOPERS ADMINISTRATORS
AO Platform: 4.3
Overview
This section offers an overview of the Variable Pie Chart for a Curation Micro Application. A Variable Pie Chart is a type of chart that extends the traditional pie chart by allowing both the size of the slices and their radius to vary, representing two dimensions of data simultaneously.
Configuration of Variable Pie Chart
 |    |

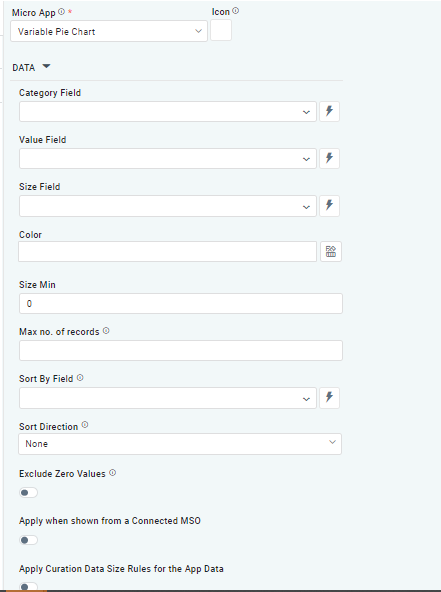

Properties
Label | UI Widget | Default | Description |
|---|---|---|---|
| Dropdown w/Expression option |
| The Category Field dropdown allows the user to select the category. |
| Dropdown w/Expression option |
| The Value Field dropdown allows the user to select a value. |
| Dropdown w/Expression option | The Size Field dropdown allows the user to select a size. | |
| Text Field w/Color Palette option |
| The Colors allow the user to select which color to use for the Pie of the chart. See Curation - Field Properties - Data Styles | Selection-of-Color. |
| Number Field |
| Option to set a Max number of records to be used by the Chart. |
| Dropdown w/Expression option |
| The Sort By Field option allows users to select a field to sort the data and provides the flexibility to define a custom expression for more advanced sorting criteria. |
| Dropdown |
| Option to set Sort order for data in the Chart to either Ascending or Descending. |
| ON/OFF Toggle |
| If enabled, zero values will be excluded. By default, this setting is disabled. |
| ON/OFF Toggle |
| The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO.
|
| ON/OFF Toggle |
| If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown. |
| Display Name - Text Field MSO Property - Dropdown |
| The Additional Tooltip Data Properties allows the user to select one or more MSO Field Properties to display their values in the tooltip when the user hovers over a data point. |
| ON/OFF Toggle |
| If enabled, titles can be added to both the X-Axis and Y-Axis. If disabled, the X-Axis and Y-Axis will not have titles. |

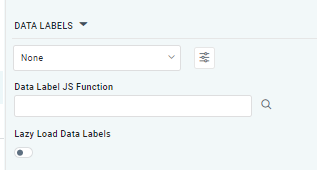

DATA LABELS |
|
|
|
| Dropdown w/Additional Properties option |
| Optional Additional Properties - expressed as a Key/Value pair. |
… Additional Properties |
|
| Optional Additional Properties - expressed as a Key/Value pair. |
| Text Field w/Search |
| The Data Label JS function allows the user to search for and define JavaScript functions that control the display or behavior of data labels in a chart. |
| ON/OFF Toggle |
| If enabled, data labels are loaded gradually as the chart is loaded. |

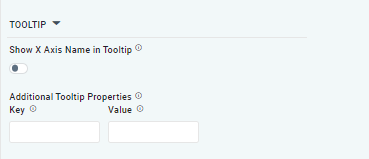

TOOLTIP |
|
|
|
| ON/OFF Toggle |
| If enabled, the tooltip displayed when hovering over data in the App will include the X-Axis name. If disabled, only the data value will be shown, without the X-Axis name |
| Key / Value - Text Fields |
| Optional Additional Tooltip Properties - expressed as a Key/Value pair. |

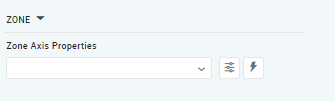

ZONE |
|
|
|
| Dropdown w/Additional Properties and Expression options |
| The Zone Axis Properties dropdown allows users to customize the properties of the Zone Axis in a variable pie chart, |
… Zone Color | Text Field |
| The Zone color refers to the color applied to different zones within a chart or graph. |
… Additional Properties | Key / Value - Text Fields |
| Optional Additional Tooltip Properties - expressed as a Key/Value pair. |
STYLES |
|
|
|
| ON/OFF Toggle |
| The Disable Animation toggle refers to turning off animated transitions or effects when the chart or visualization is rendered or updated. |
| Number Field |
| The Display Order determines the priority or order in which grouped or categorized data is presented. |

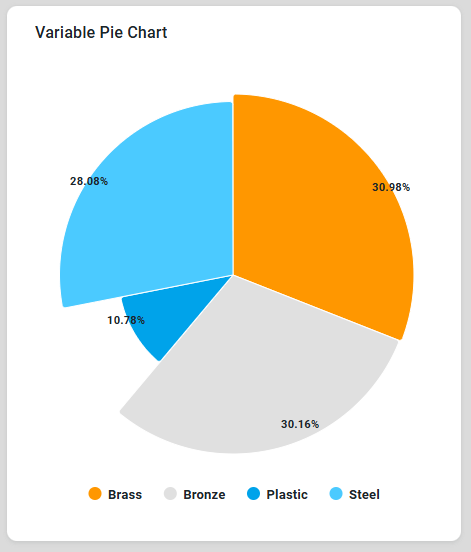

Examples of Curated Variable Pie Chart
