Trait - Trend
Intended audience: ANALYSTS DEVELOPERS ADMINISTRATORS
AO Platform: 4.3
Overview
This trait is used to show KPI Trend cards in Easy Answers with the following components:
KPI value (aggregation for the default period) and Rate of Change for the previous period.
Trend chart at the bottom for the default interval.
High and Low values from the trend chart.

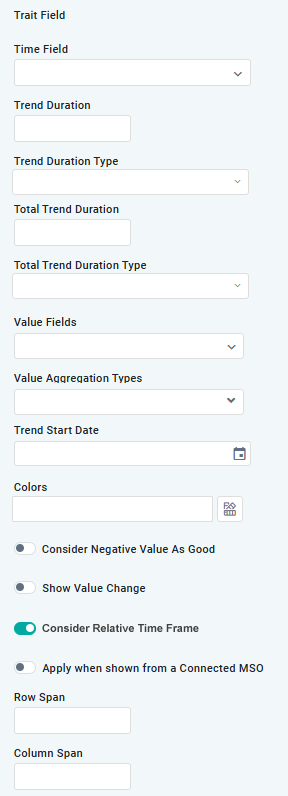

Trait Fields
Label | UI Widget | Description |
|---|---|---|
Time Field | Dropdown | Select MSO field property with a date/time value. |
Trend Duration | Number | |
Trend Duration Type | Dropdown | Select Duration Type from list of available options: Day, Month, Month and Year, Quarter, Week, Year. |
Total Trend Duration | Number | |
Total Trend Duration Type | Dropdown | Select Duration Type from list of available options: Day, Month, Month and Year, Quarter, Week, Year. |
Value Fields | Dropdown | Repeater section for MSO field properties that are to be used for the Trend lines. |
Value Aggregation Types | Dropdown | Repeater section for Value Aggregation Types. Select from list of available options: Avg, Count, Countdistinct, Expression, Max, Min, Stddev, Stedevpop, Sum, Variance. |
Trend Start Date | Calendar | |
Colors | Color palette | Select Color palette per Theme. |
Consider Negative Value as Good | ON/OFF Toggle | OFF is default. |
Show Value Change | ON/OFF Toggle | OFF is default. |
Consider Relative Time Frame | ON/OFF Toggle | If enabled, the Chart data showing for the Trend will be relative to current date. ON is default. |
Apply when shown from a Connected MSO | ON/OFF Toggle | OFF is default. |
Row Span | The Number of Rows the Trend App will use in the Result page Layout. | |
Column Span | The Number of Columns the Trend App will use in the Result page Layout. |

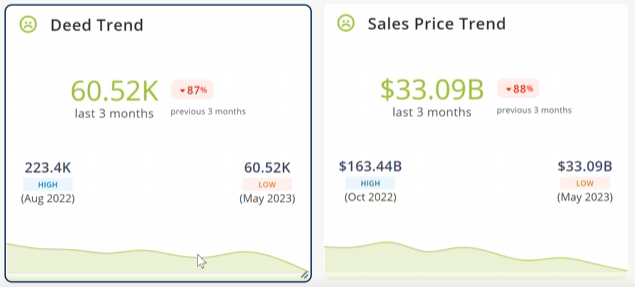

Example Visualization
