Curation - Variable Pie Chart

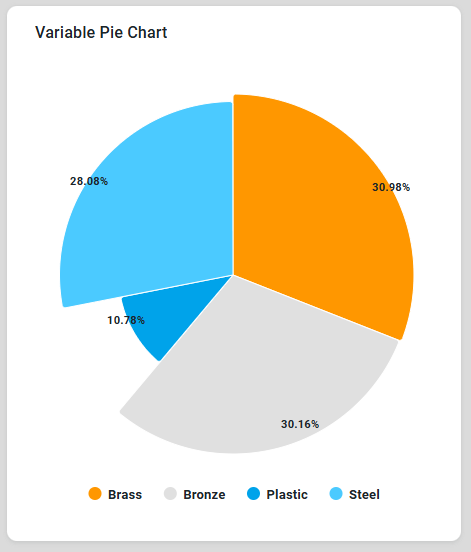

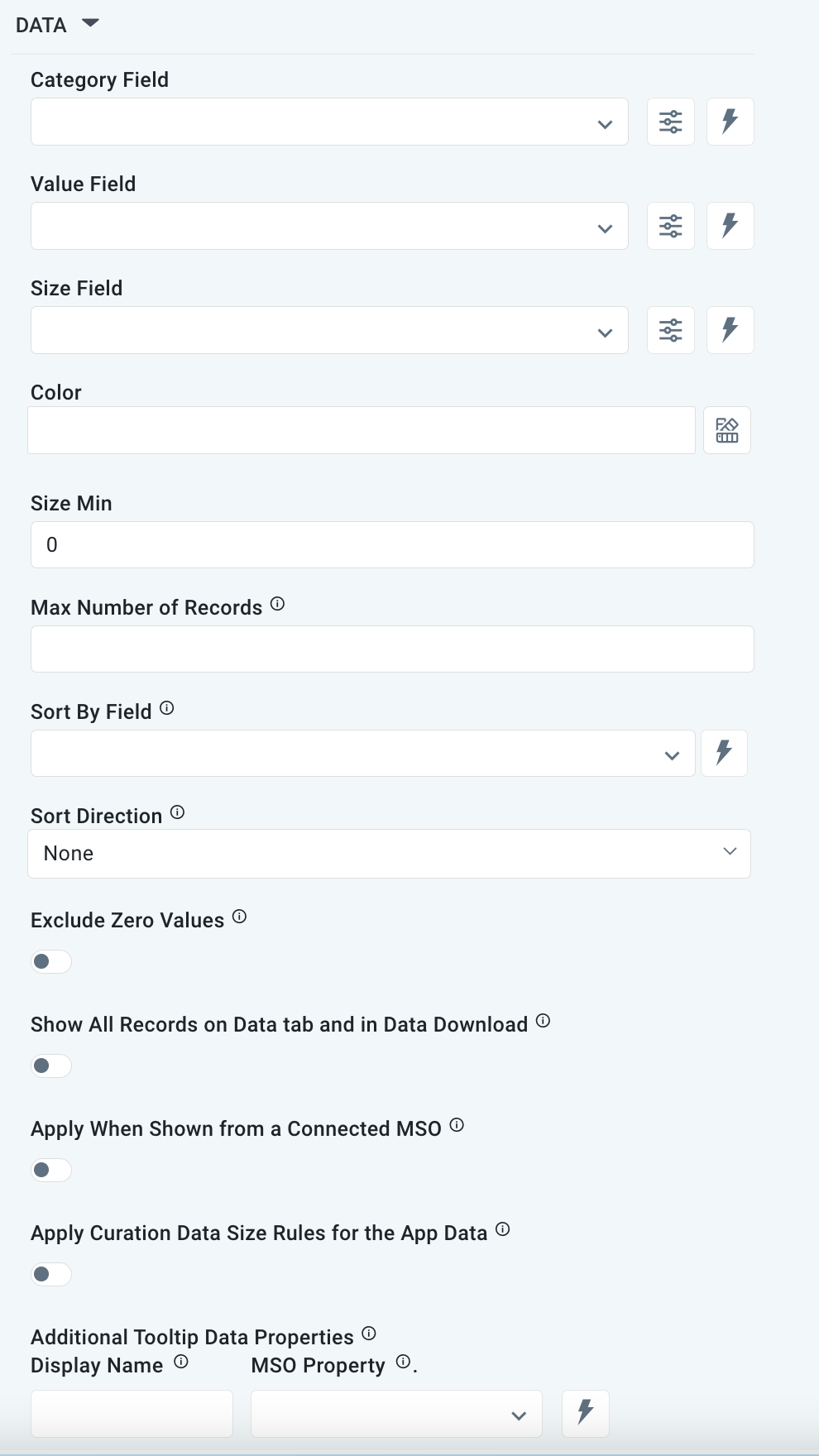

• Category Field

Dropdown w/Expression option

The Category Field dropdown allows the user to select the category.

• Value Field

Dropdown w/Expression option

The Value Field dropdown allows the user to select a value.

• Size Field

Dropdown w/Expression option

The Size Field dropdown allows the user to select a size.

• Color

Text Field w/Color Palette option

The Colors allow the user to select which color to use for the Pie of the chart. See Curation - Field Properties - Data Styles | Selection of Color.

• Size Min

Number Field

• Max no. of records

Number Field

Option to set a Max number of records to be used by the Chart.

• Sort By Field

Dropdown w/Expression option

The Sort By Field option allows users to select a field to sort the data and provides the flexibility to define a custom expression for more advanced sorting criteria.

• Sort Direction

Dropdown

Option to set the Sort order for data in the Chart to either Ascending or Descending.

• Exclude Zero Values

ON/OFF Toggle

OFF

If enabled, zero values will be excluded. By default, this setting is disabled.

• Apply when shown from a Connected MSO

ON/OFF Toggle

OFF

The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO.

• ON: The feature or behavior is applied when the data originates from the connected MSO.

• OFF: The feature or behavior is not applied, regardless of the connected MSO.

• Apply Curation Data Size Rules for the App Data

ON/OFF Toggle

OFF

If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.

• Additional Tooltip Data Properties

Text Field + MSO Property Dropdown

Repeater section for Display Name and MSO Property to be added to a Tooltip.

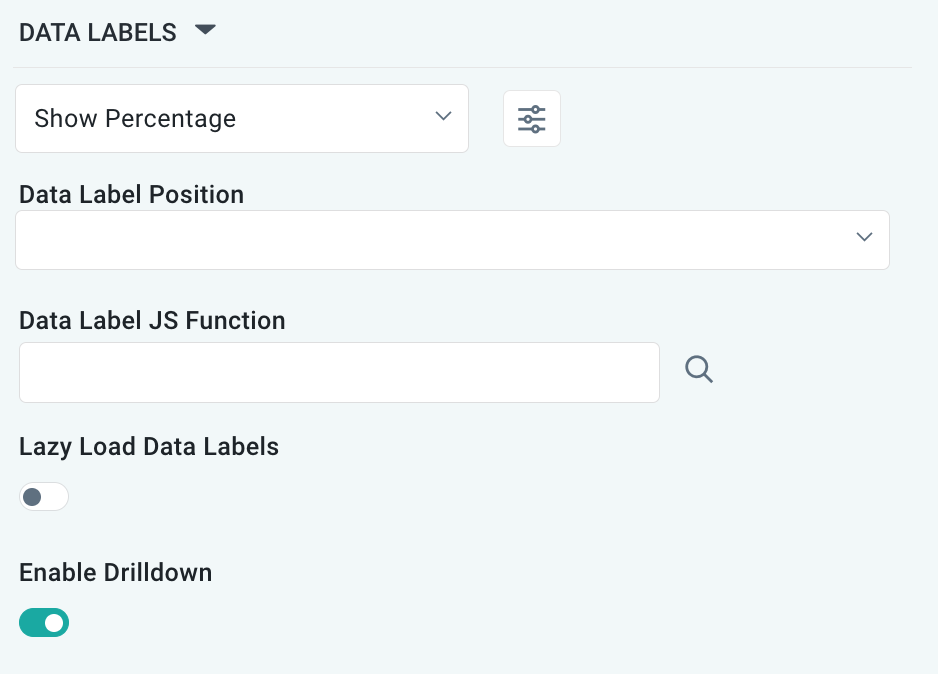

• None/Percentage/Value

Dropdown w/Additional Properties option

Show Percentage

Optional Additional Properties - expressed as a Key/Value pair.

… Additional Properties

Optional Additional Properties - expressed as a Key/Value pair.

• Data Label Position

Dropdown

Option to add Data Labels Inside or Outside.

• Data Label JS Function

Text Field w/Search

The Data Label JS function allows the user to search for and define JavaScript functions that control the display or behavior of data labels in a chart.

• Lazy Load Data Labels

ON/OFF Toggle

OFF

If enabled, data labels are loaded gradually as the chart is loaded.

• Enable Drilldown

ON/OFF Toggle

ON

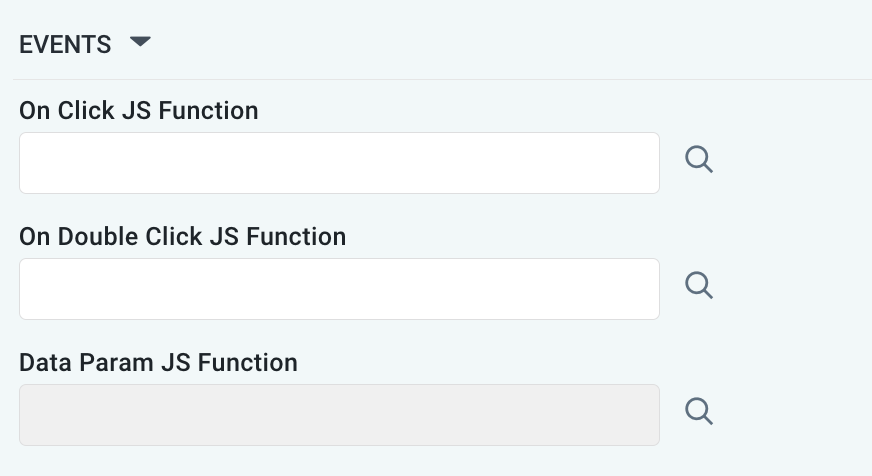

• On Click JS Function

Text Field w/Search

• On Double Click JS Function

Text Field w/Search

• Data Param JS Function

Text Field w/Search

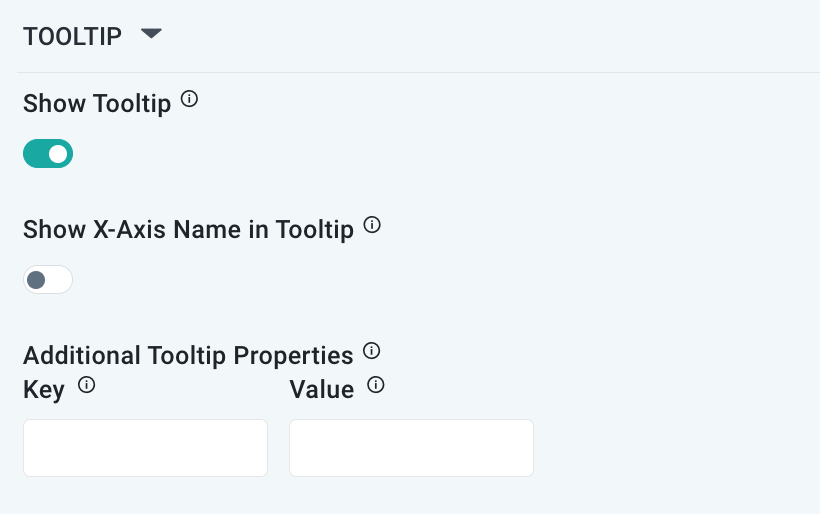

• Show Tooltip

ON/OFF Toggle

ON

• Show X-Axis Name in Tooltip

ON/OFF Toggle

OFF

If enabled, the tooltip displayed when hovering over data in the App will include the X-Axis name. If disabled, only the data value will be shown, without the X-Axis name

• Additional Tooltip Properties

Key / Value - Text Fields

Optional Additional Tooltip Properties - expressed as a Key/Value pair.

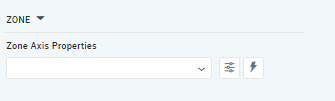

• Zone Axis Properties

Dropdown w/Additional Properties and Expression options

The Zone Axis Properties dropdown allows the user to configure different zones within the chart, which is often used for visual emphasis or categorization, eg. select Temperature and create functions for values (celcius) identifying the following thresholds: less than 0 = black, 0-9.9 = blue, 10-19.9 = green, 20-24.9 = orange, and 25 and above = red.

… Zone Color

Text Field

The Zone color refers to the color applied to different zones within a chart or graph.

… Additional Properties

Key / Value - Text Fields

Optional Additional Tooltip Properties - expressed as a Key/Value pair.

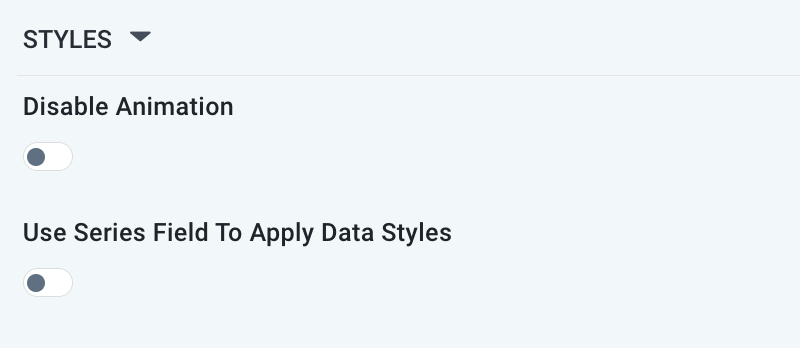

• Disable Animation

ON/OFF Toggle

OFF

The Disable Animation toggle refers to turning off animated transitions or effects when the chart or visualization is rendered or updated.

• Use Series Field to Apply Data Styles

ON/OFF Toggle

OFF
