Curation - Clientside Treemap Chart

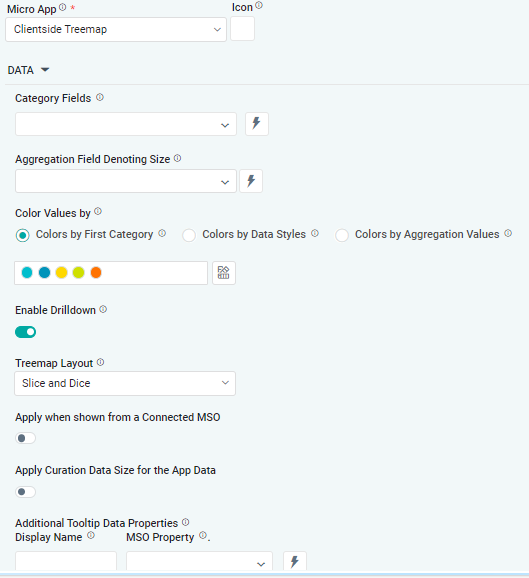

• Category Fields

Dropdown w/Expression option

The Category Fields are columns or attributes in the dataset that represent the grouping levels in the treemap. Each field corresponds to a layer in the hierarchy, with higher-level categories nesting lower-level ones.

• Aggregation Field Denoting Size

Dropdown w/Expression option

The Aggregation Field Denoting Size dropdown allows the user to determine the size of each rectangle in the treemap. It typically represents a quantitative metric and other numerical values, and is aggregated to calculate the total value for each category or subcategory.

• Color Values by

• Colors by First Category

Radio button

The Colors by First Category allows the user to visually distinguish the main groups in the dataset at a glance while maintaining consistency across subcategories through inherited color shades or tones.

• Colors by Data Styles

Radio button

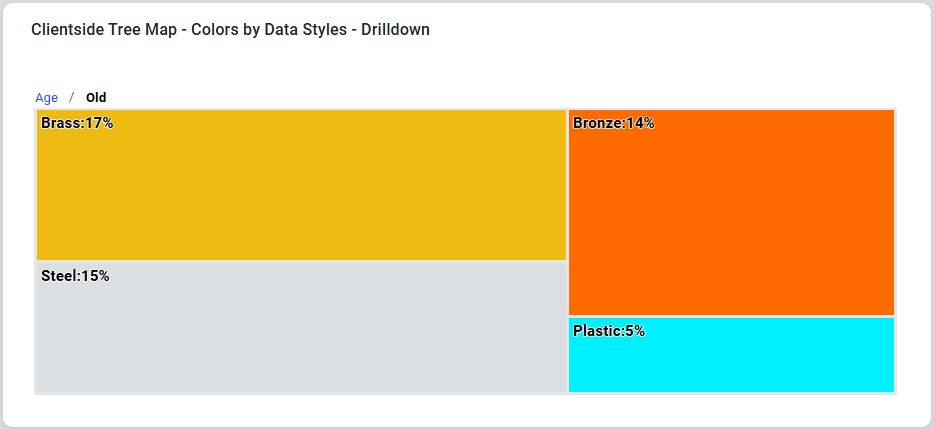

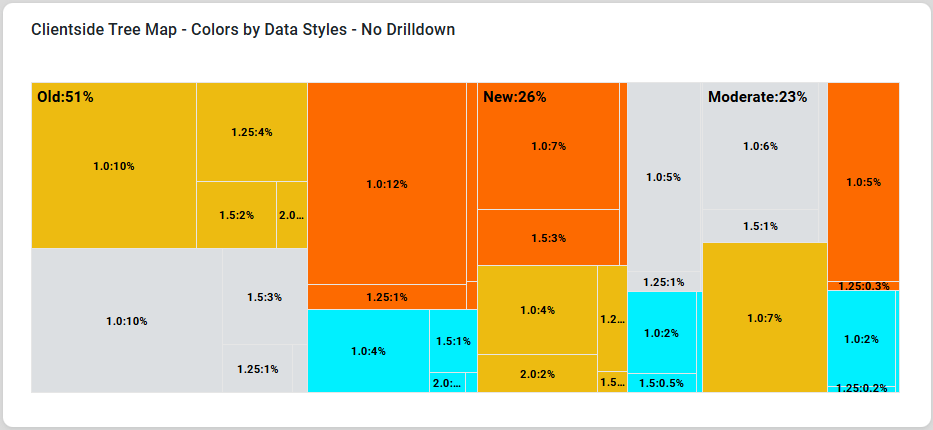

The Colors by Data Styles refers to a feature where the color of each rectangle is determined by specific data values or styles applied to the dataset. This approach provides an additional layer of meaning to the visualization, allowing users to interpret the data more effectively based on color variations.

• Colors by Aggregation Values

Radio button

The Colors by Aggregate Values refers to assigning colors to rectangles based on aggregated numerical values for each category or subcategory. This method uses aggregated data, such as totals, averages, or counts, to define the color intensity, gradient, or specific hues, visually representing the data's magnitude or category.

• Enable Drilldown

ON/OFF Toggle

ON

If enabled, allows the user to drill down to see group details in the treemap.

• Treemap Layout

Dropdown

The Treemap Layout dropdown allows the user to choose from layout options such as Slice and Dice, Stripes, Squarified, and Strip.

• Apply when shown from a Connected MSO

ON/OFF Toggle

 OFF

The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO.

• ON: The feature or behavior is applied when the data originates from the connected MSO.

• OFF: The feature or behavior is not applied, regardless of the connected MSO.

• Apply Curation Data Size for the App Data

ON/OFF Toggle

OFF

If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.

• Additional Tooltip Data Properties

Display Name - Text Field

MSO Property - Dropdown

The Additional Tooltip Data Properties allow the user to select one or more MSO Field Properties to display their values in the tooltip when the user hovers over a data point.

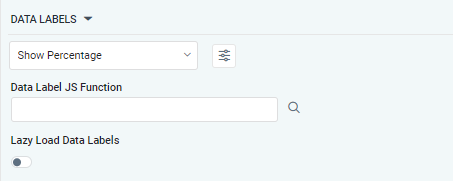

• None/Percentage/Value

Dropdown w/Additional Properties option

 Percentage

Optional Additional Properties - expressed as a Key/Value pair.

… Additional Properties

Optional Additional Properties - expressed as a Key/Value pair.

• Data Label JS Function

Text Field w/Search

The Data Label JS function allows the user to search for and define JavaScript functions that control the display or behavior of data labels in a chart.

• Lazy Load Data Labels

ON/OFF Toggle

 OFF

If enabled, in Clientside Treemap Chart, curation controls whether data labels are loaded gradually as the chart is interacted.

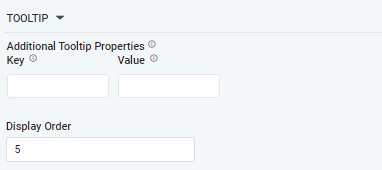

• Additional Tooltip Properties

Key / Value - Text Fields

Optional Additional Tooltip Properties - expressed as a Key/Value pair.
