Overview

This section provides an overview of a Temporal Aggregation Chart. The Temporal Aggregation Chart is a powerful visualization tool for analyzing time-based trends and patterns. Its flexibility and interactivity make it suitable for a wide range of use cases, from business analytics to scientific research.

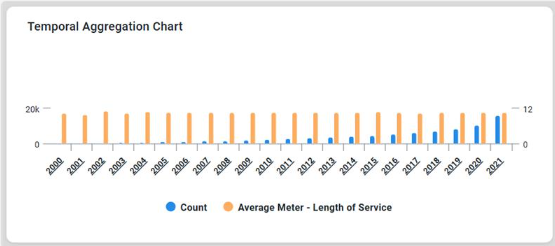

Example

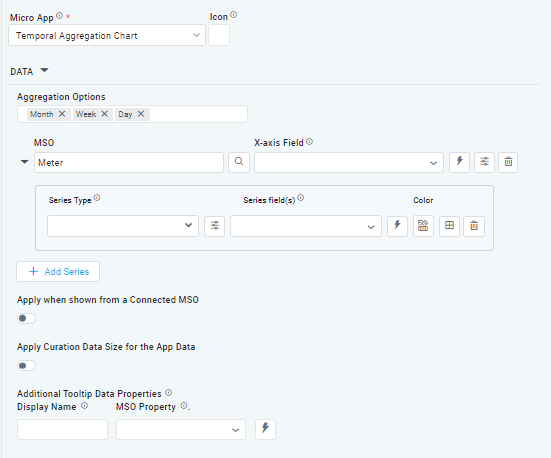

Configuration of Temporal Aggregation Chart

DATA Properties

Label	UI Widget	Description
MSO
X-axis Field	Dropdown w/Expression option	The X-axis Field allows the user to select the MSO Field Property to represent the X-axis values in the Chart.
Series Type Field	Dropdown w/Expression option	The Series Type Field dropdown in area chart curation allows users to specify a field that determines the type of series displayed in the chart.

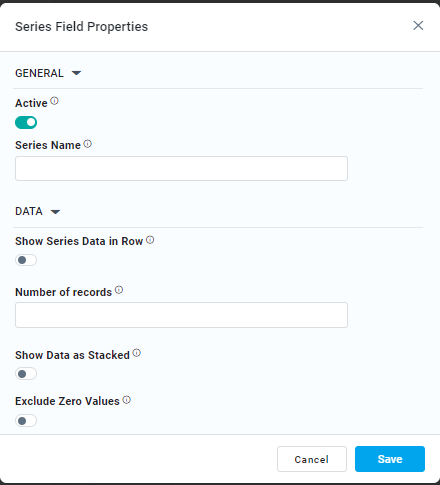

Series Field	Dropdown w/Additional Properties and Expression options	The Series Field allows the user to select an MSO Field Property to represent the Series Field.
… Exclude Zero Values	ON/OFF Toggle	If enabled, zero values will be excluded. By default, this setting is disabled.
Additional Properties	Key / Value - Text Fields	Optional Additional Properties - expressed as a Key/Value pair.
Colors	Text Field w/Color Palette option	The Colors allows the user to select which color to use for the multi XY series. See Curation - Field Properties - Data Styles.
Delete Series		Deleting a series in a chart allows the user to delete the associated data series from the chart configuration
Apply when shown from a Connected MSO	ON/OFF Toggle	The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO. ON: The feature or behavior is applied when the data originates from the connected MSO. OFF: The feature or behavior is not applied, regardless of the connected MSO.
Apply Curation Data Size for the App Data	ON/OFF Toggle	If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.
Additional Tooltip Data Properties	Display Name - Text Field MSO Property - Dropdown	The Additional Tooltip Data Properties allow the user to select one or more MSO Field Properties to display their values in the tooltip when the user hovers over a data point.

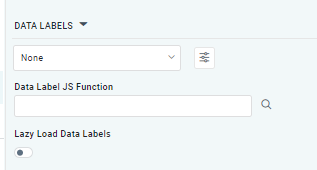

DATA LABELS Properties

Label	UI Widget	Default	Description
None/Percentage/Value	Dropdown w/Additional Properties option	Show Percentage	Optional Additional Properties - expressed as a Key/Value pair.
… Additional Properties			Optional Additional Properties - expressed as a Key/Value pair.
Data Label JS Function	Text Field w/Search		The Data Label JS function allows users to search for and define JavaScript functions that control the display or behavior of data labels in a chart.
Lazy Load Data Labels	ON/OFF Toggle		If enabled, in the Temporal Aggregation Chart, curation controls whether data labels are loaded gradually as the chart is interacted.

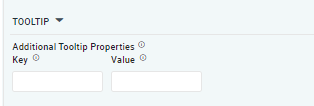

Label	UI Widget	Default	Description
Additional Tooltip Properties	Key / Value - Text Fields		Optional Additional Tooltip Properties - expressed as a Key/Value pair.

STYLES Properties

Label	UI Widget	Default	Description
Disable Animation	ON/OFF Toggle	OFF	If enabled, the Disable Animation toggle refers to turning off any animated transitions or effects that occur when the chart or visualization is rendered or updated.
