Overview

This section provides an overview of the Packed Bubble Chart. The Packed Bubble Chart is a data visualization that uses bubbles of varying sizes to represent data points. It is particularly effective for displaying hierarchical or categorical data, where the size of each bubble indicates a specific value or magnitude, and related bubbles are grouped.

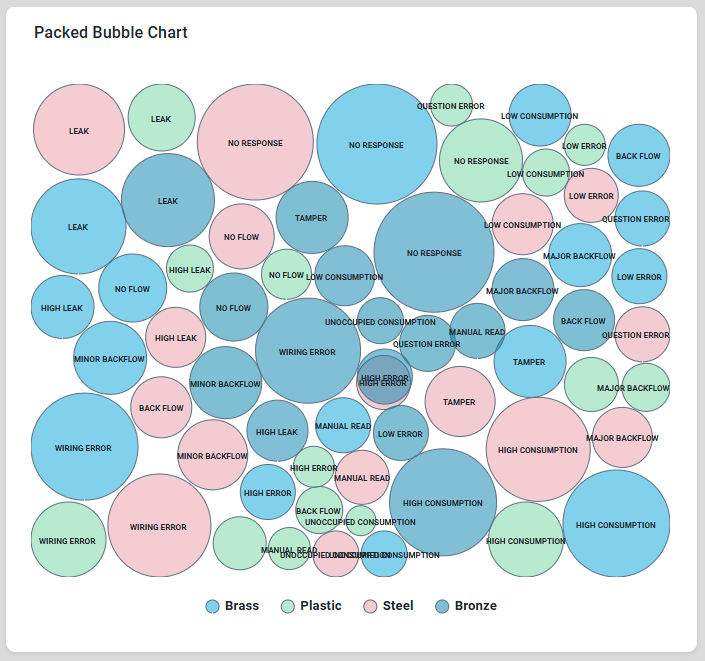

Example

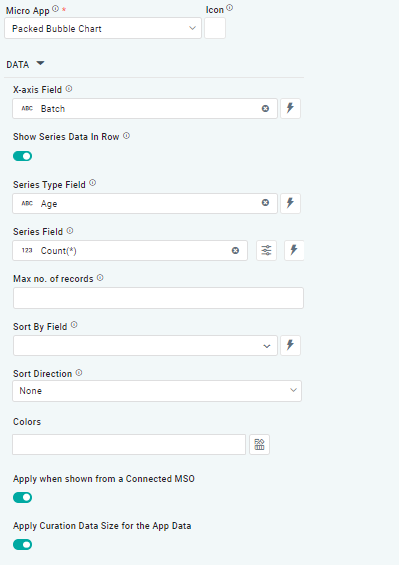

Configuration of Packed Bubble Chart

DATA Properties

Label	UI Widget	Default	Description
X-axis Field	Dropdown w/Expression option		The X-axis Field allows the user to select the MSO Field Property to represent the X-Axis values in the Chart.
Show Series Data in Row	ON/OFF Toggle	OFF	If enabled, select a single Series Type and Series Field below. If disabled, select one or more Series Fields below.
Series Fields	Repeater Dropdown w/Additional Properties, Expression, and Color options		The Series Fields allows the user to select an MSO Field Property to represent the Series Field.
… Active	ON/OFF Toggle	OFF	If enabled, the feature or data series is active and will be applied or shown in the column chart.

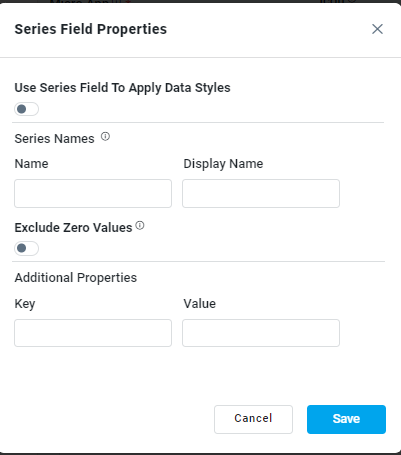

… Use Series Field to Apply Data Styles	ON/OFF Toggle	OFF	The ON/OFF toggle refers to enabled or disabled the application of data styles to the series field.
… Series Name	Text Field		The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend.
… Y-Axis Name	Text Field		The Y-Axis Name field displays the name of Y-Axis.
… Exclude Zero Values	ON/OFF Toggle	OFF	If enabled, zero values will be excluded. By default, this setting is disabled.
… Additional Properties	Key / Value - Text Fields		Optional Additional Properties - expressed as a Key/Value pair.
Series Type Field	Dropdown w/Expression option		The Series Type Field dropdown in Packed Bubble Chart curation allows the user to specify a field that determines the type of series displayed in the chart.
Series Field	Dropdown w/Additional Properties and Expression options		The Series Fields allows the user to select an MSO Field Property to represent the Series Field.
… Use Series Field to Apply Data Styles	ON/OFF Toggle	ON	The Use Series Field to Apply Data Styles ON/OFF Toggle controls whether data styles are applied based on the series field: ON: Data styles will be applied dynamically according to the series field. OFF: Data styles will not be influenced by the series field.
… Series Names	Name / Display Name - Text Fields		The Series Name allows the user to enter Series Names that will be used to identify the data Series in Legend.
… Additional Properties	Key / Value - Text Fields		Optional Additional Properties - expressed as a Key/Value pair.
Colors	Text Field w/Color Palette option		The Colors allows the user to select which color to use for the Packed Bubble Chart. See Curation - Field Properties - Data Styles.
Max no. of records	Number Field		Option to set a Max number of records to be used by the Chart.
Sort By Field	Dropdown w/Expression option		The Sort By Field option allows the user to select a field to sort the data and also provides the flexibility to define a custom expression for more advanced sorting criteria.
Sort Direction	Dropdown		Option to set Sort order for data in the Chart to either Ascending or Descending.
Apply when shown from a Connected MSO	ON/OFF Toggle	ON	The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO. ON: The feature or behavior is applied when the data originates from the connected MSO. OFF: The feature or behavior is not applied, regardless of the connected MSO.
Apply Curation Data Size for the App Data	ON/OFF Toggle	ON	If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.

STYLES Properties

Label	UI Widget	Default	Description
Disable Animation	ON/OFF Toggle	OFF	The Disable Animation toggle refers to turning off any animated transitions or effects that occur when the chart or visualization is rendered or updated.
