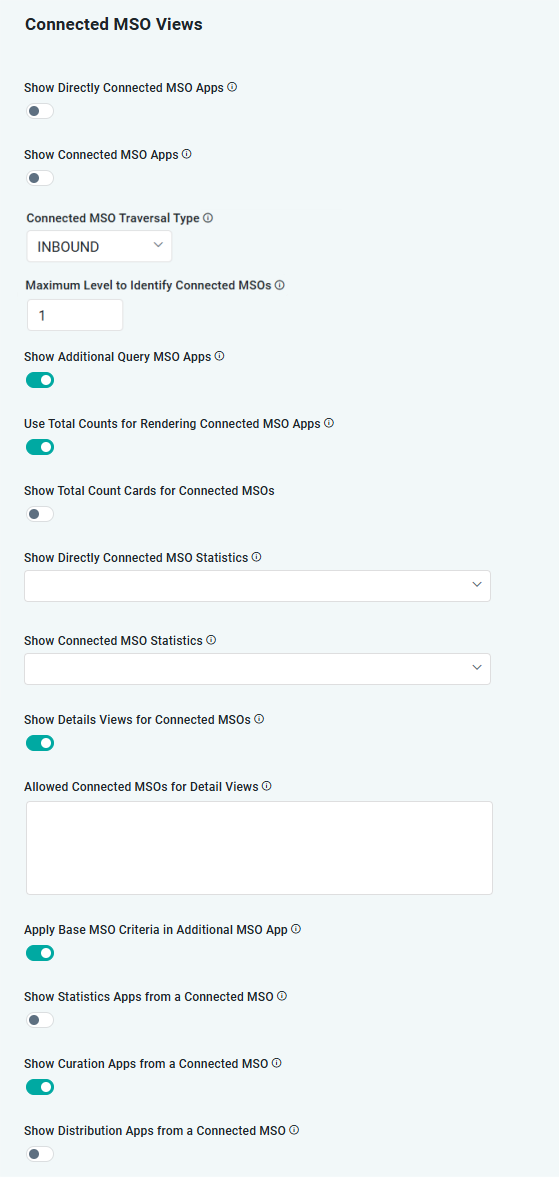

Easy Answers > Connected MSO Views

• Show Directly Connected MSO Apps

ON/OFF Toggle

OFF

If enabled, shows directly connected MSO Apps.

• Show Connected MSO Apps

ON/OFF Toggle

ON

If enabled, MSO Apps will be shown for all connected MSOs.

• Connected MSO Traversal Type

Dropdown

INBOUND

Select from the available options, including INBOUND, OUTBOUND, or ANY. This allows the system to consider Connected MSOs with a relationship into or out of the current MSO (or either).

• Maximum Level to Identify Connected MSOs

Number Field

1

Enter the number of levels away from the current MSO that Connected MSOs can be found. The default is 1, which means a direct connection to the current MSO, whereas a 2 or higher number means that the graph will be searched for indirectly Connected MSOs.

• Show Additional Query MSO Apps

ON/OFF Toggle

ON

If enabled, MSO Apps will be shown for all additional MSOs that were returned as part of the query.

• Use Total Counts for Rendering Connected MSO Apps

ON/OFF Toggle

ON

If enabled, shows all Connected MSO Apps, - if disabled, only shows Connected MSO Apps in Detail Views. Disabling this toggle will greatly improve performance on rendering the Results page.

• Show Total Count Cards for Connected MSOs

ON/OFF Toggle

OFF

If enabled, show Total Count Cards for connected MSOs.

• Show Directly Connected MSO Statistics

Dropdown

Select directly connected MSO statistics from the dropdown.

• Show Connected MSO Statistics

True/False Dropdown

“empty”

If enabled, MSO Statistics will be shown for all connected MSOs.

• Show Details Views for Connected MSOs

ON/OFF Toggle

ON

If enabled, shows Details Views for connected MSOs when the query returns a single value or in the Single Entry Popup dialog.

• Allowed Connected MSOs for Details Views

Multi-Line Text Field

Enter allowed connected MSOs to show the Detailed Views when the query returns a single value or in the Single Entry Popup dialog. Enter as comma-separated values of MSOs.

• Apply Base MSO Criteria in Additional MSO Apps

ON/OFF Toggle

ON

If enabled, connected MSO Apps will use the same query criteria as the base MSO.

• Show Statistics from a Connected MSO

ON/OFF Toggle

OFF

If enabled, Statistics Apps will be shown from connected MSOs.

• Show Curation from a Connected MSO

ON/OFF Toggle

ON

If enabled, Curation Apps will be shown from connected MSOs.

• Show Distribution Apps from a Connected MSO

ON/OFF Toggle

OFF

If enabled, Distribution Apps will be shown from connected MSOs.
