Intended audience: end-users analysts developers administrators
AO Platform: 4.3

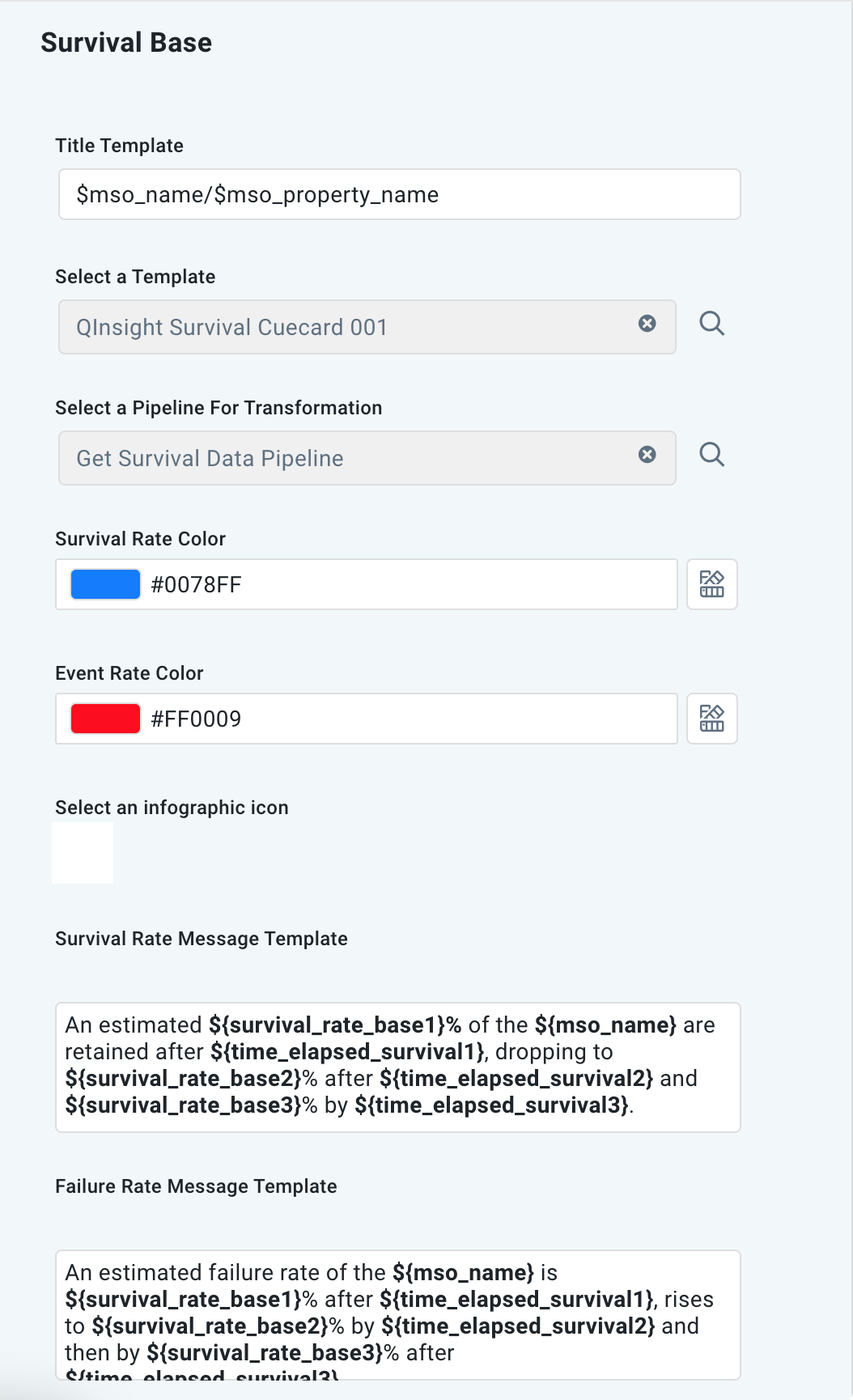

Properties for Insights > Survival Base
Formatting of Infographic Message Template

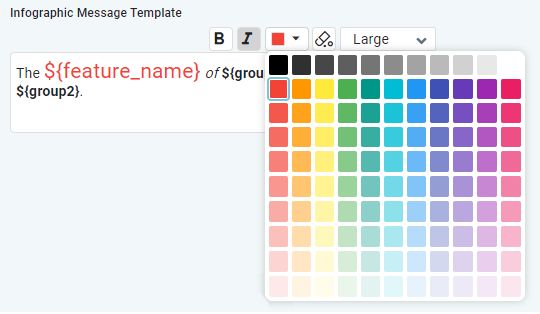

Some multi-line text field properties have additional formatting options. These properties are related to the Infographic card templates. Options include:
-
B - select some text, then click B to turn selected text Bold
-
I - select some text, then click I to turn selected text Italics
-
Color - select some text, then click dropdown to select a color
-
Clear - click to clear all existing formatting of the text
-
Font - select some text, then click dropdown to select font-size (small, medium, large)
|
Label |
Type |
Default Value |
Description |
|---|---|---|---|
|
Title Template |
Text Field |
$MSO_NAME/$MSO_PROPERTY_NAME |
Available variables
|
|
Select a Template |
Search Dialog |
QInsight Spatial Cuecard 003 |
Use Search dialog to select a Quick Insight Template. |
|
Select a Pipeline for Transformation |
Search Dialog |
Get Spatial Correlation Infographic Data Pipeline |
Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional). |
|
Message Template |
Multiline Text Field |
${area1} has the ${highLowLabel} ${targetVar}, followed by ${hotspots} |
Template for Textual Insight, including the data variables that will be added into template at runtime. Variables available
|
|
No Confidence Message Template |
Multiline Text Field with formatting options |
System is not able to find any significant insights |
Template for No Confidence Message. |
|
Infographic No Significance Message Template |
Multiline Text Field with formatting options |
No significant insight found. |
Template for the Infographic card - no significance. |
|

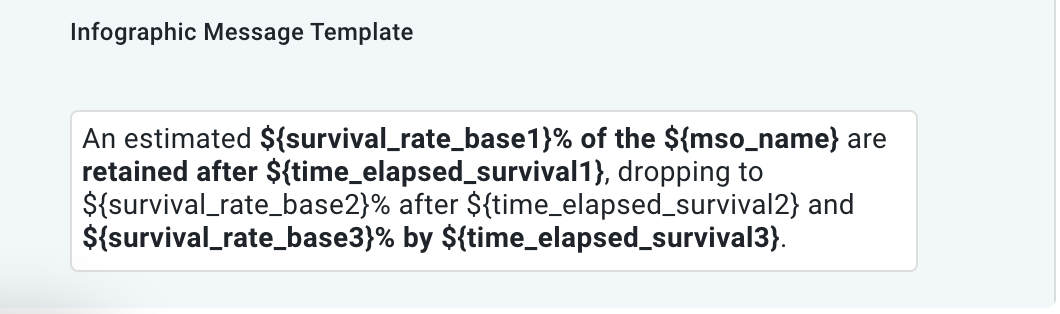

Infographic Message Template |
Multiline Text Field with formatting options |
${title} area has ${highLowLabel} number of ${targetVar}. |
Template for the Infographic card. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
