Overview

This section provides an overview of a Funnel Chart. A Funnel Chart is a visualization that allows user to display data that flows through sequential stages in a process, illustrating how values decrease progressively at each stage.

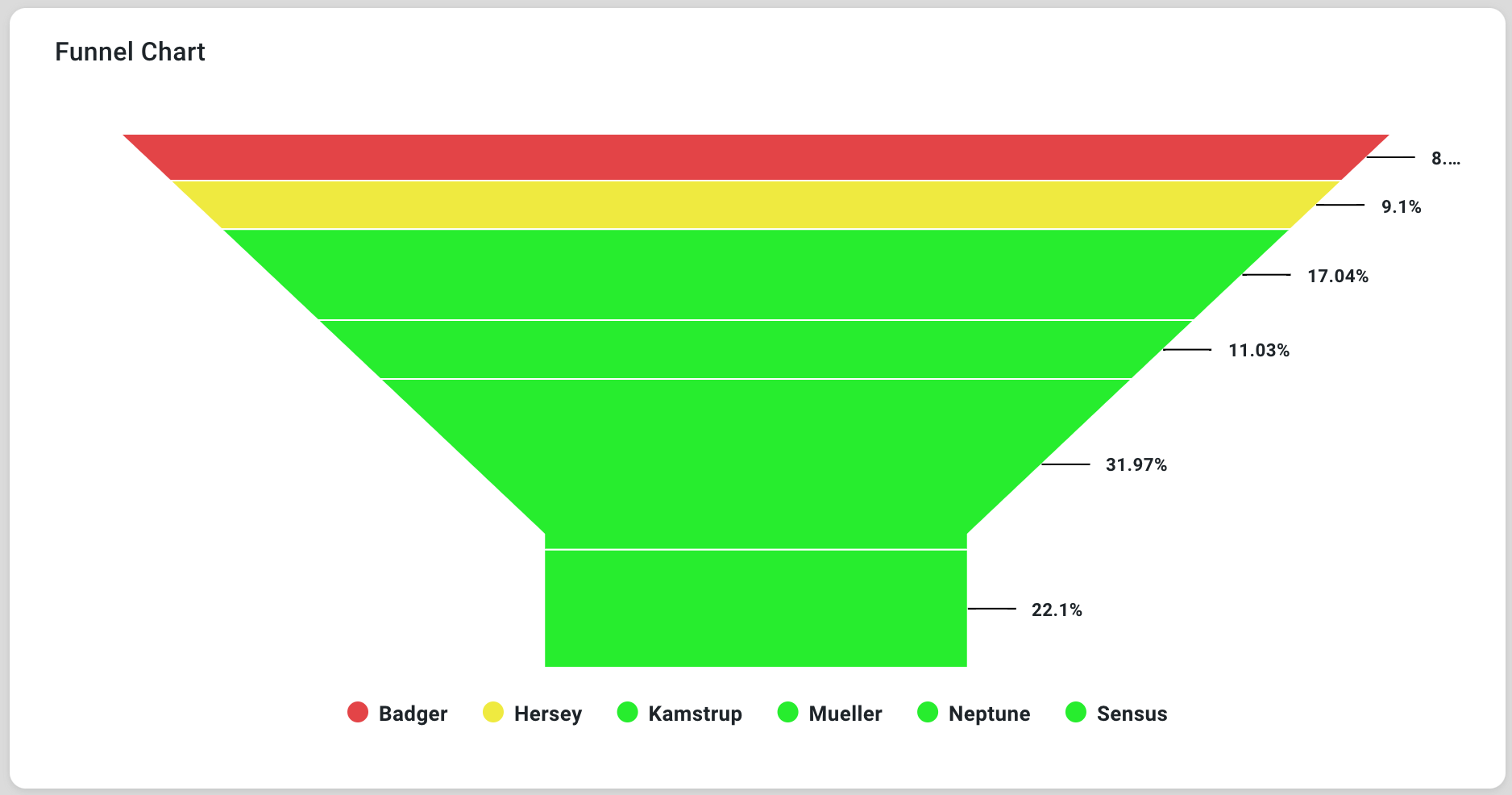

Example

Configuration of Funnel Chart

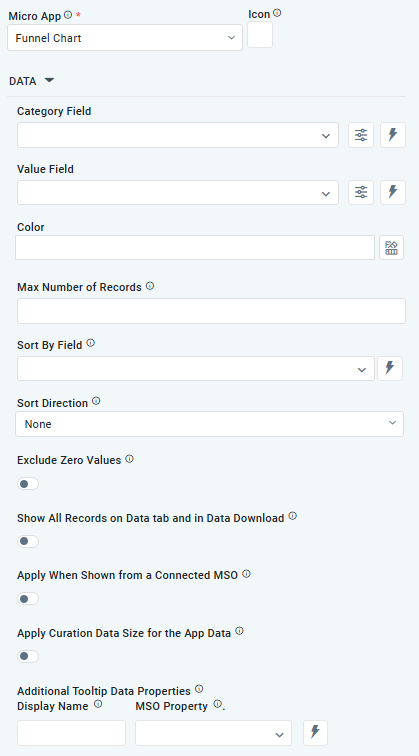

DATA Properties

Label	UI Widget	Default	Description
Category Field	Dropdown w/Expression option		The Category Field dropdown allows the user to select the category.
Value Field	Dropdown w/Expression option		The Value Field dropdown allows the user to select a value.
Color	Text Field w/Color Palette option		The Colors allows the user to select which color to use for the Funnel of the chart. See Curation - Field Properties - Data Styles.
Max no. of records	Number Field		Option to set a Max number of records to be used by the Chart.
Sort By Field	Dropdown w/Expression option		The Sort By Field option allows the user to select a field to sort the data and also provides the flexibility to define a custom expression for more advanced sorting criteria.
Sort Direction	Dropdown		Option to set Sort order for data in the Chart to either Ascending or Descending.
Exclude Zero Values	ON/OFF Toggle	OFF	If enabled, zero values will be excluded.
Show all Data on Data tab and in Data Download	ON/OFF Toggle	OFF	If enabled, all records, otherwise excluded by the LIMIT clause when “Show TopN Plus Other” is enabled, and used by the App, will be shown on the App’s Data tab as well as in the Download Data option.
Apply when shown from a Connected MSO	ON/OFF Toggle	OFF	The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO. ON: The feature or behavior is applied when the data originates from the connected MSO. OFF: The feature or behavior is not applied, regardless of the connected MSO.
Apply Curation Data Size Rules for the App Data	ON/OFF Toggle	OFF	If enabled, the Record Count rules will be applied. The series will not be shown if the Record Count rules are not met.

DATA LABELS Properties

Label	UI Widget	Default	Description

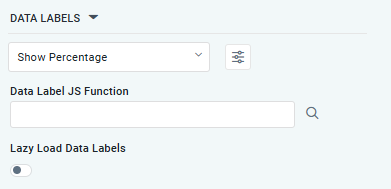

None/Percentage/Value	Dropdown w/Additional Properties option		Optional Additional Properties - expressed as a Key/Value pair.
… Additional Properties			Optional Additional Properties - expressed as a Key/Value pair.
Data Label JS Function	Text Field w/Search		The Data Label JS function allows the user to search for and define JavaScript functions that control the display or behavior of data labels in a chart.
Lazy Load Data Labels	ON/OFF Toggle	OFF	If enabled, in the forest chart curation controls whether data labels are loaded gradually as the chart is interacted.

Label	UI Widget	Default	Description

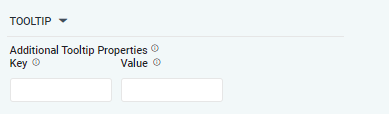

Additional Tooltip Properties	Key / Value - Text Fields		Optional Additional Tooltip Properties - expressed as a Key/Value pair.

ZONE Properties

Label	UI Widget	Default	Description

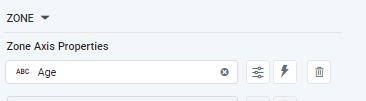

Zone Axis Properties	Dropdown w/Additional Properties and Expression options		The Zone Axis Properties dropdown allows the user to customize the properties of the Zone Axis in an area chart,

STYLES Properties

Label	UI Widget	Default	Description

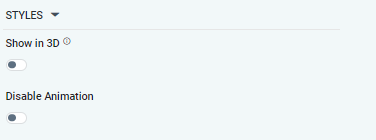

Show in 3D	ON/OFF Toggle	OFF	If enabled, shows the funnel Chart a 3D chart shows the Column Chart with some depth and at a rotated angle.
Disable Animation	ON/OFF Toggle	OFF	The Disable Animation toggle refers to turning off any animated transitions or effects that occur when the chart or visualization is rendered or updated.
