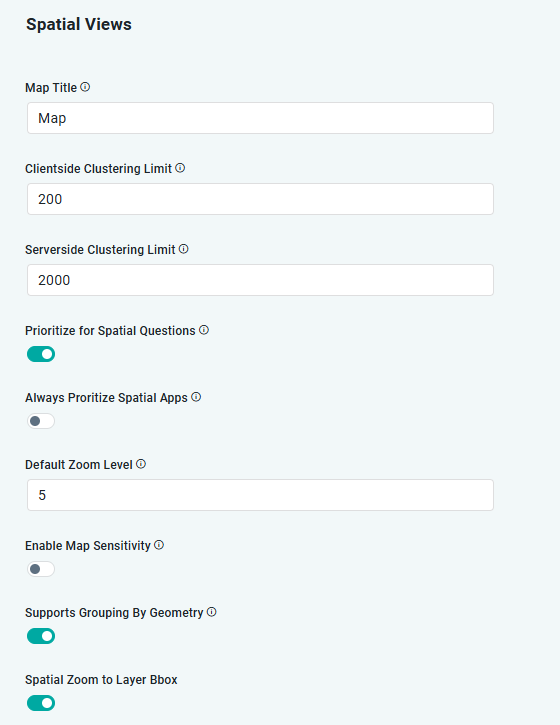

Easy Answers > Spatial Views

• Map Title

String

Map

Title to show for Map App. Both absolute text and variables can be used to form a Title, including: {mso_name}, {mso_name_plural}, {related_mso_name}, {related_mso_name_plural}, {mso_property_name}, and {mso_property_name_plural}.

• Clientside Clustering Limit

Number

200

The maximum number of data points to be shown before a cluster is generated and shown instead of individual data points. The clusters are created client-side after all data has been retrieved. This approach should only be used on smaller data volumes. Be careful using clientside clustering on large volumes of data.

• Serverside Clustering Limit

Number

2,000

The maximum number of data points to be shown with a cluster being generated and shown instead of individual data points. The clusters are created on the server before data is sent to the client-side browser. Use this approach for large volumes of data.

• Prioritize for Spatial Questions

ON/OFF Toggle

ON

If enabled, the Map view will be prioritized and displayed towards the top of the dashboard for location related questions and where MSO is enabled by Spatial Trait.

• Always Prioritize Spatial Apps

ON/OFF Toggle

OFF

If enabled, the Map view will always be prioritized and displayed towards the top of the dashboard for MSOs enabled by Spatial Trait.

• Default Zoom Level

Number

4

The Map view will be shown at the zoom level provided.

• Enable Map Sensitivity

ON/OFF Toggle

OFF

If enabled, refreshes other dashboard apps based on current Map view.

• Supports Grouping by Geometry

ON/OFF Toggle

ON

If enabled,

• Spatial Zoom to Layer Bounding Box

ON/OFF Toggle

ON

If enabled, Map will be zoomed to the extent of the Bounding Box for the Map Layer.

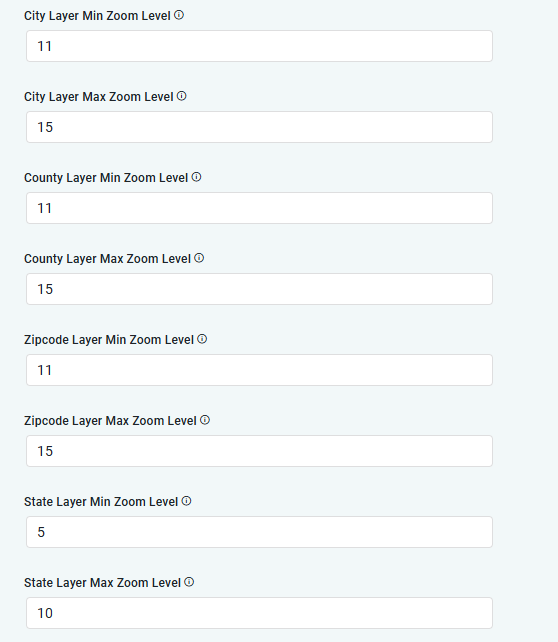

• City Layer Min Zoom Level

Number

A numerical value between 1 and 23 (maximum depends on levels available in Map App)

• City Layer Max Zoom Level

Number

A numerical value between 1 and 23 (maximum depends on levels available in Map App)

• County Layer Min Zoom Level

Number

A numerical value between 1 and 23 (maximum depends on levels available in Map App)

• County Layer Max Zoom Level

Number

A numerical value between 1 and 23 (maximum depends on levels available in Map App)

• Zipcode Layer Min Zoom Level

Number

A numerical value between 1 and 23 (maximum depends on levels available in Map App)

• Zipcode Layer Max Zoom Level

Number

A numerical value between 1 and 23 (maximum depends on levels available in Map App)

• State Layer Min Zoom Level

Number

A numerical value between 1 and 23 (maximum depends on levels available in Map App)

• State Layer Max Zoom Level

Number

A numerical value between 1 and 23 (maximum depends on levels available in Map App)

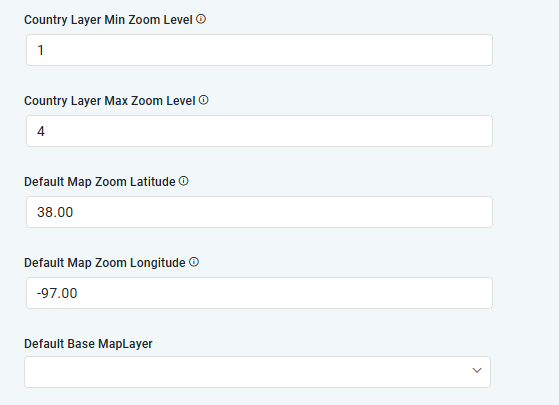

• Country Layer Min Zoom Level

Number

A numerical value between 1 and 23 (maximum depends on levels available in Map App)

• Country Layer Max Zoom Level

Number

A numerical value between 1 and 23 (maximum depends on levels available in Map App)

• Default Map Zoom Latitude

Number

A numerical value between -90 and 90

• Default Map Zoom Longitude

Number

A numerical value between -180 and 180
