Intended audience: analysts developers administrators
AO Platform: 4.3
Overview
-
This trait is used when the data is timestamped at irregular times. This could be service orders created at different times.

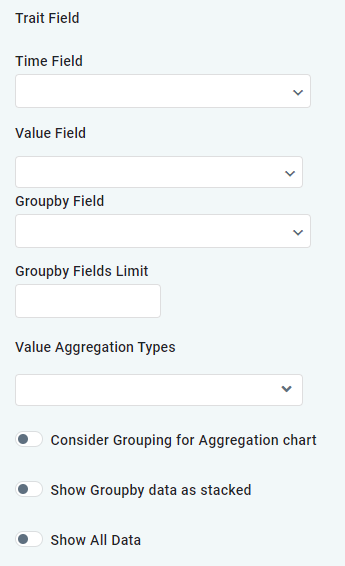

Trait Fields
|
Label |
Description |
|---|---|
|
Time Field |
Add a Time Field containing date/time value. |
|
Value Field |
Repeater for adding one or more Value Field containing any other property value to be displayed for each date/time value, eg. a Meter Reading. |
|
Groupby Field |
|
|
Groupby Fields Limit |
|
|
Value Aggregation Type |
Dropdown with these options: Avg, Count, Countdistinct, Expression, Max, Min, Stddev, Stddevpop, Sum, Variance. |
|
Consider Grouping for Aggregation chart |
ON/OFF Toggle, default is OFF. |
|
Show Groupby data as stacked |
ON/OFF Toggle, default is OFF. |
|
Show All Data |
ON/OFF Toggle, default is OFF. |
Example Visualization
…
