Insights > Trend Line | AO Platform

Intended audience: end-users analysts developers administrators

AO Platform: 4.3

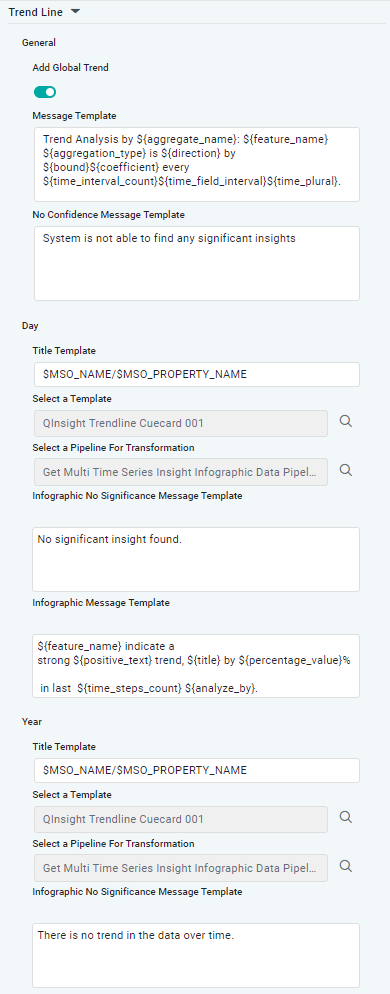

Properties for Insights > Trend Line

Formatting of Infographic Message Template

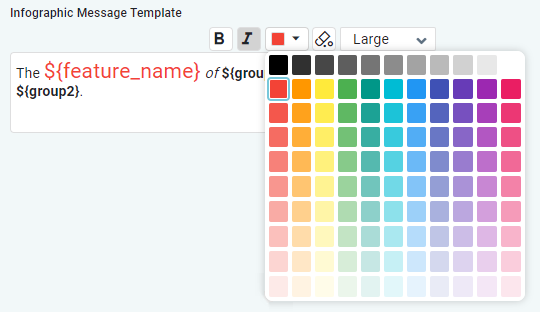

Some multi-line text field properties have additional formatting options. These properties are related to the Infographic card templates. Options include:

B - select some text, then click B to turn selected text Bold
I - select some text, then click I to turn selected text Italics
Color - select some text, then click dropdown to select a color
Clear - click to clear all existing formatting of the text
Font - select some text, then click dropdown to select font-size (small, medium, large)

Label	Type	Default Value	Description
Day of Week
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Trendline Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Multi Time Series Insight Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Template for the Infographic card - no significance.
Infographic Message Template	Multiline Text Field with formatting options	${feature_name} indicate a strong ${positive_text} trend, ${title} by ${percentage_value}% in last ${time_steps_count} ${analyze_by}.	Template for the Infographic card.
Day of Year
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Trendline Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Multi Time Series Insight Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Template for the Infographic card - no significance.
Infographic Message Template	Multiline Text Field with formatting options	${feature_name} indicate a strong ${positive_text} trend, ${title} by ${percentage_value}% in last ${time_steps_count} ${analyze_by}.	Template for the Infographic card.
Week of Year
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Trendline Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Multi Time Series Insight Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Template for the Infographic card - no significance.
Infographic Message Template	Multiline Text Field with formatting options	${feature_name} indicate a strong ${positive_text} trend, ${title} by ${percentage_value}% in last ${time_steps_count} ${analyze_by}.	Template for the Infographic card.
Month of Year
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Trendline Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Multi Time Series Insight Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Template for the Infographic card - no significance.
Infographic Message Template	Multiline Text Field with formatting options	${feature_name} indicate a strong ${positive_text} trend, ${title} by ${percentage_value}% in last ${time_steps_count} ${analyze_by}.	Template for the Infographic card.
Quarter of Year
Title Template	Text Field	$INSIGHT_TYPE - $MSO_NAME/$MSO_PROPERTY_NAME for $RUNTIME_LABEL	Available variables $INSIGHT_TYPE $MSO_NAME $MSO_PROPERTY_NAME $RUNTIME_LABEL
Select a Template	Search Dialog	QInsight Trendline Cuecard 001	Use Search dialog to select a Quick Insight Template.
Select a Pipeline for Transformation	Search Dialog	Get Multi Time Series Insight Infographic Data Pipeline	Use Search dialog to select a Pipeline that will transform input data into a suitable format for the Quick Insight model (optional).
Infographic No Significance Message Template	Multiline Text Field with formatting options	No significant insight found.	Template for the Infographic card - no significance.
Infographic Message Template	Multiline Text Field with formatting options	${feature_name} indicate a strong ${positive_text} trend, ${title} by ${percentage_value}% in last ${time_steps_count} ${analyze_by}.	Template for the Infographic card.
Add Global Trend	ON/OFF Toggle	Enabled
Message Template	Multiline Text Field	Trend Analysis by ${aggregate_name}: ${feature_name} ${aggregation_type} is ${direction} by ${bound}${coefficient} every ${time_interval_count}${time_field_interval}${time_plural}.	Template for Textual Insight, including the data variables that will be added into template at runtime. Variables available ${aggregate_name} ${feature_name} ${aggregation_type} ${direction} ${bound} ${coefficient} ${time_interval_count} ${time_field_interval} ${time_plural}
