Overview

This section offers an overview of the Variable Pie Chart for a Curation Micro Application. A Variable Pie Chart is a type of chart that extends the traditional pie chart by allowing both the size of the slices and their radius to vary, representing two dimensions of data simultaneously.

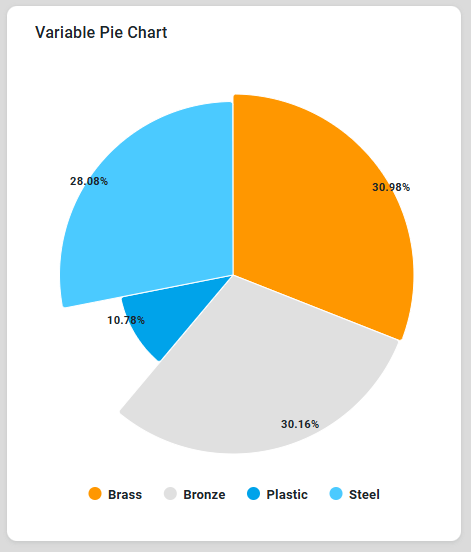

Example

Configuration of Variable Pie Chart

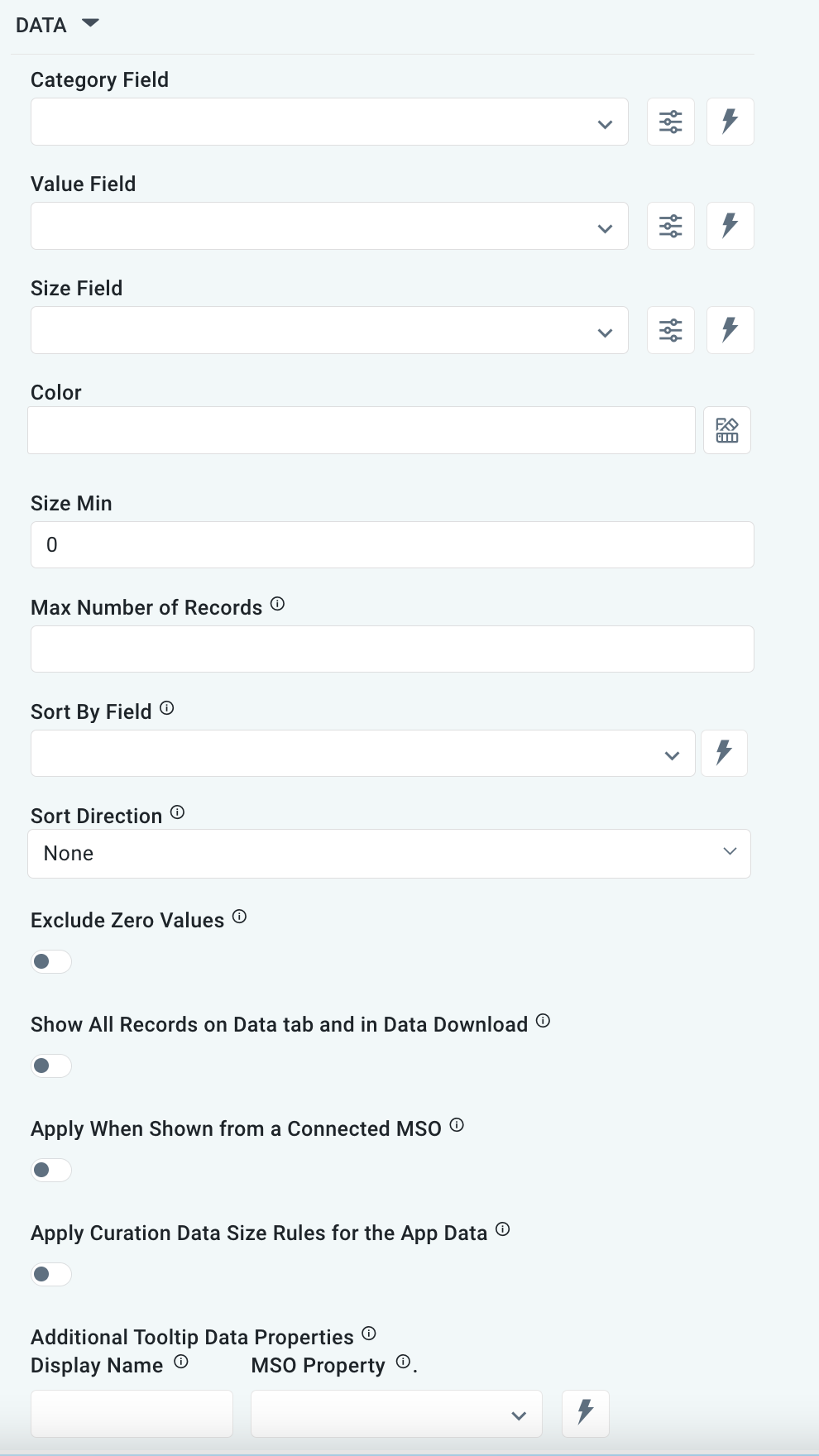

DATA Properties

Label	UI Widget	Default	Description
Category Field	Dropdown w/Expression option		The Category Field dropdown allows the user to select the category.
Value Field	Dropdown w/Expression option		The Value Field dropdown allows the user to select a value.
Size Field	Dropdown w/Expression option		The Size Field dropdown allows the user to select a size.
Color	Text Field w/Color Palette option		The Colors allow the user to select which color to use for the Pie of the chart. See Curation - Field Properties - Data Styles.
Size Min	Number Field
Max no. of records	Number Field		Option to set a Max number of records to be used by the Chart.
Sort By Field	Dropdown w/Expression option		The Sort By Field option allows users to select a field to sort the data and provides the flexibility to define a custom expression for more advanced sorting criteria.
Sort Direction	Dropdown		Option to set the Sort order for data in the Chart to either Ascending or Descending.
Exclude Zero Values	ON/OFF Toggle	OFF	If enabled, zero values will be excluded. By default, this setting is disabled.

Apply when shown from a Connected MSO	ON/OFF Toggle	OFF	The Apply When Shown from a Connected MSO ON/OFF Toggle determines whether the settings or actions are applied specifically when data is displayed through a connected MSO. ON: The feature or behavior is applied when the data originates from the connected MSO. OFF: The feature or behavior is not applied, regardless of the connected MSO.
Apply Curation Data Size Rules for the App Data	ON/OFF Toggle	OFF	If enabled, the Record Count rules will be applied. If the Record Count rules are not met, the series will not be shown.
Additional Tooltip Data Properties	Text Field + MSO Property Dropdown		Repeater section for Display Name and MSO Property to be added to a Tooltip.

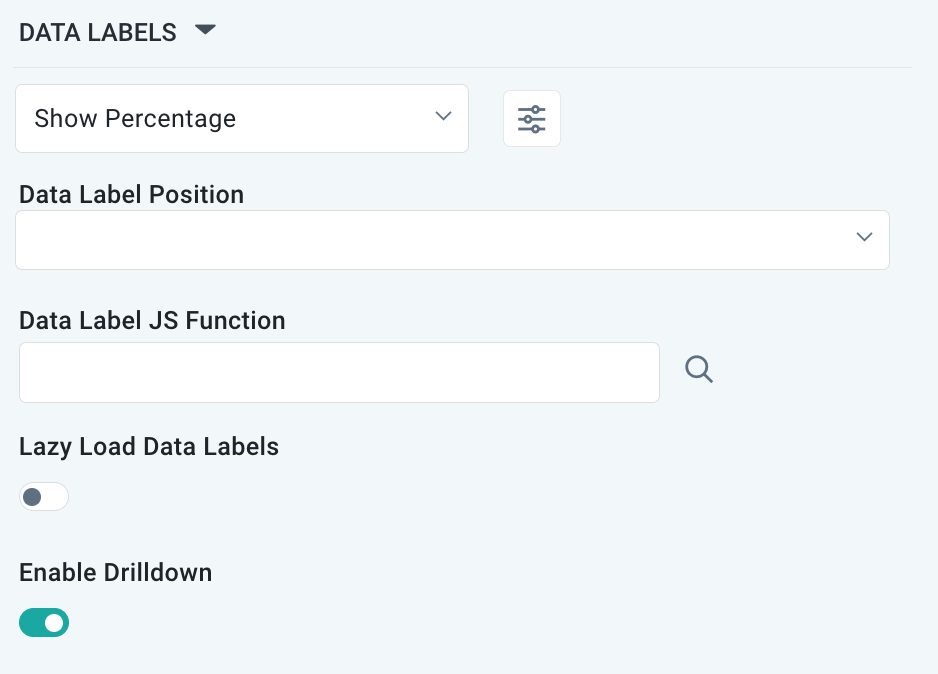

DATA LABELS Properties

Label	UI Widget	Default	Description
None/Percentage/Value	Dropdown w/Additional Properties option	Show Percentage	Optional Additional Properties - expressed as a Key/Value pair.
… Additional Properties			Optional Additional Properties - expressed as a Key/Value pair.
Data Label Position	Dropdown		Option to add Data Labels Inside or Outside.
Data Label JS Function	Text Field w/Search		The Data Label JS function allows the user to search for and define JavaScript functions that control the display or behavior of data labels in a chart.
Lazy Load Data Labels	ON/OFF Toggle	OFF	If enabled, data labels are loaded gradually as the chart is loaded.
Enable Drilldown	ON/OFF Toggle	ON

EVENTS Properties

Label	UI Widget	Default	Description
On Click JS Function	Text Field w/Search
On Double Click JS Function	Text Field w/Search
Data Param JS Function	Text Field w/Search

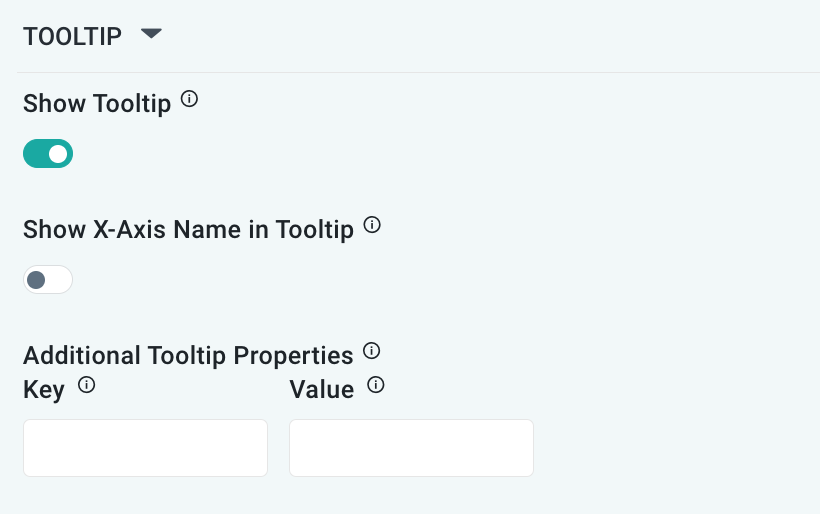

Label	UI Widget	Default	Description
Show Tooltip	ON/OFF Toggle	ON
Show X-Axis Name in Tooltip	ON/OFF Toggle	OFF	If enabled, the tooltip displayed when hovering over data in the App will include the X-Axis name. If disabled, only the data value will be shown, without the X-Axis name
Additional Tooltip Properties	Key / Value - Text Fields		Optional Additional Tooltip Properties - expressed as a Key/Value pair.

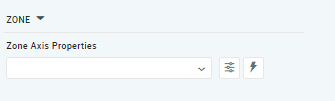

ZONE Properties

Label	UI Widget	Description
Zone Axis Properties	Dropdown w/Additional Properties and Expression options	The Zone Axis Properties dropdown allows users to customize the properties of the Zone Axis in a Variable Pie Chart.
… Zone Color	Text Field	The Zone color refers to the color applied to different zones within a chart or graph.
… Additional Properties	Key / Value - Text Fields	Optional Additional Tooltip Properties - expressed as a Key/Value pair.

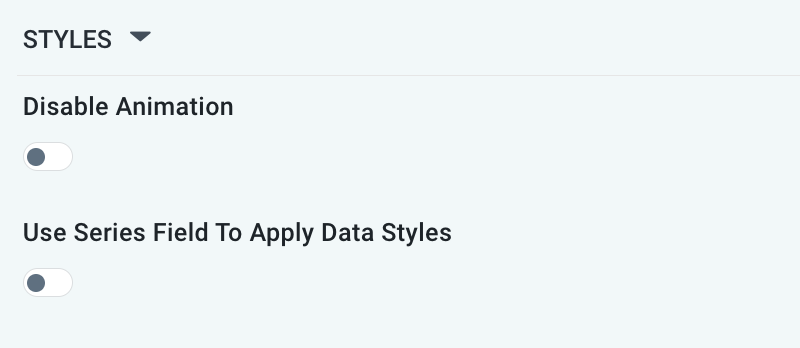

STYLES Properties

Label	UI Widget	Default	Description
Disable Animation	ON/OFF Toggle	OFF	The Disable Animation toggle refers to turning off animated transitions or effects when the chart or visualization is rendered or updated.
Use Series Field to Apply Data Styles	ON/OFF Toggle	OFF
